DMC 340 U 5-axis Large Machining Center

5-axis (Universal Machining), Recently Arrived, All Machines

Details :

Make  DMG
Type DMC 340 U
Year    2002
Control    Heidenhain iTNC 530

Technical Details :

X-Axis  2.800 mm (Cross)
Y-Axis 3.400 mm (Longitudinal)
Z-Axis 1.600 mm (Vertical)
B-Axis Simultaneous
C-Axis Simultaneous
Rapid motion (X/Y/Z) 60 / 30 / 40 m/min
Spindle speeds 10.000 rpm
Spindle power 44/32 KW
Torque 288 NM
Tool Taper HSK 100
Tool capacity 120
Tool diameter 130 / 250 mm
Tool length 650 mm
Tool weight 30 Kg

Other Details :

NC rotary table 2500 x 2000 mm
Table load cap 10.000 Kg
Pallet Changer System
No of pallets
2
Pallet size 2.500 x 2.000 mm
Top Plate Rotary table 2.800 mm dia

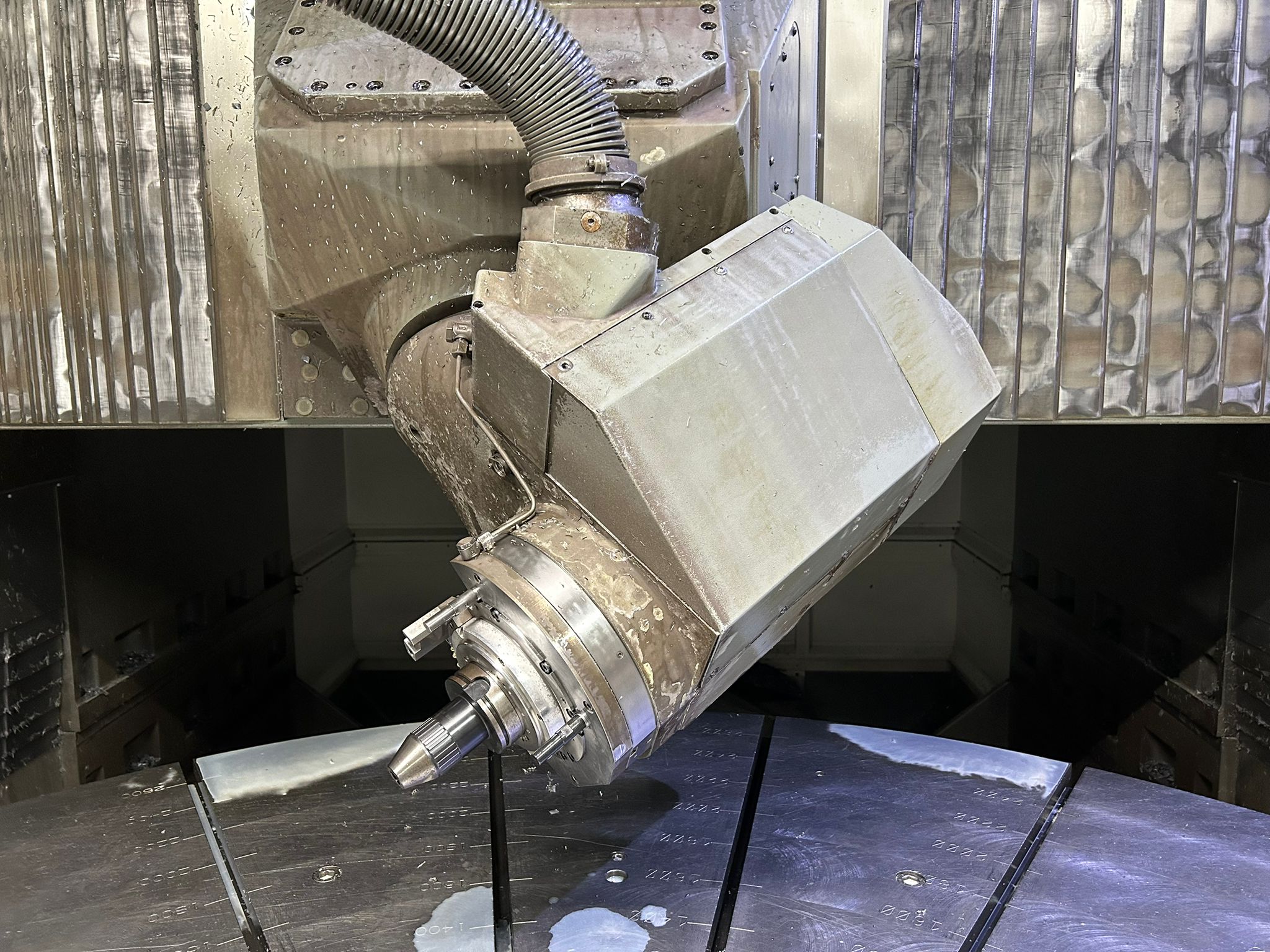

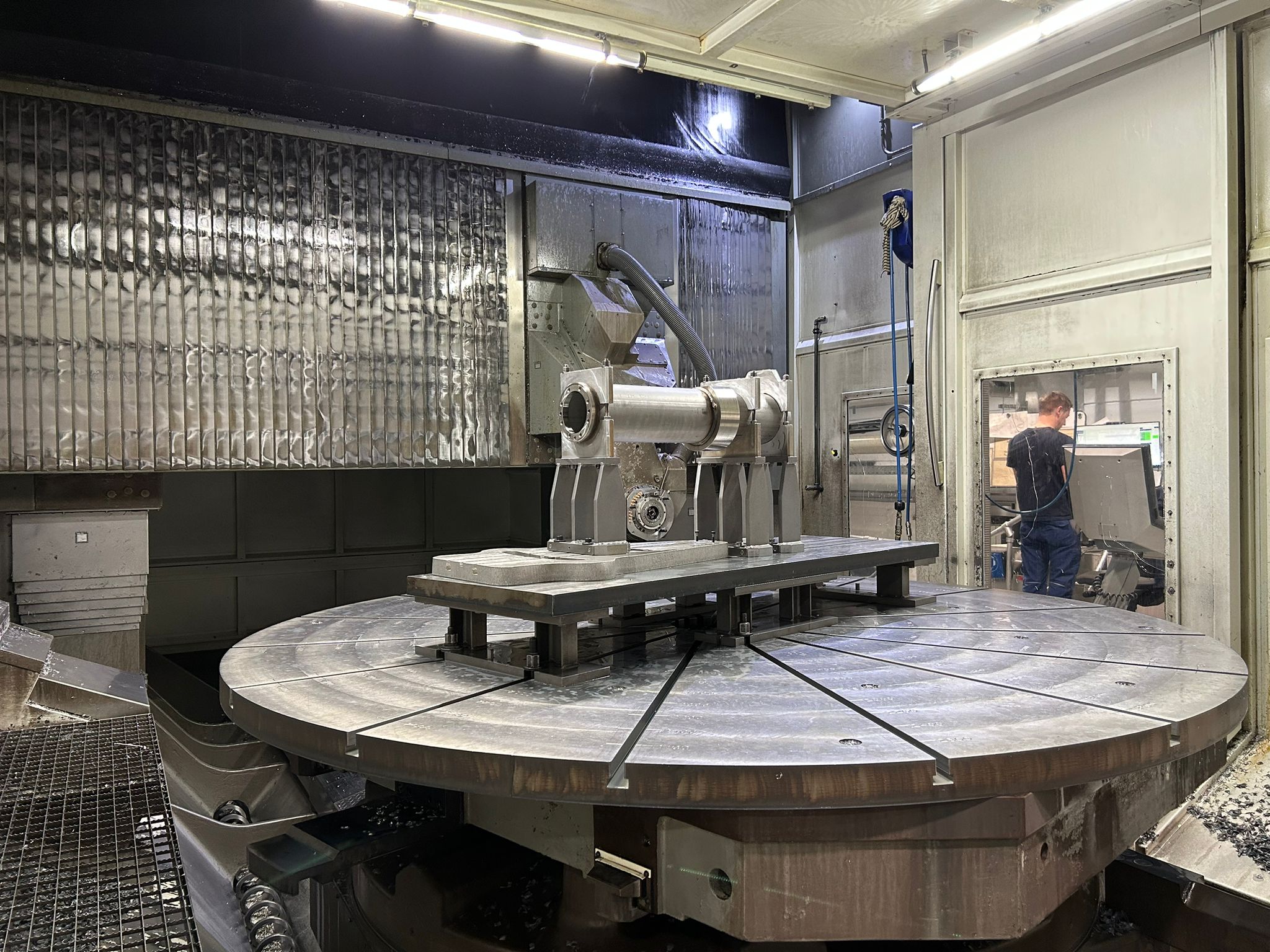

Machine Gallery :
