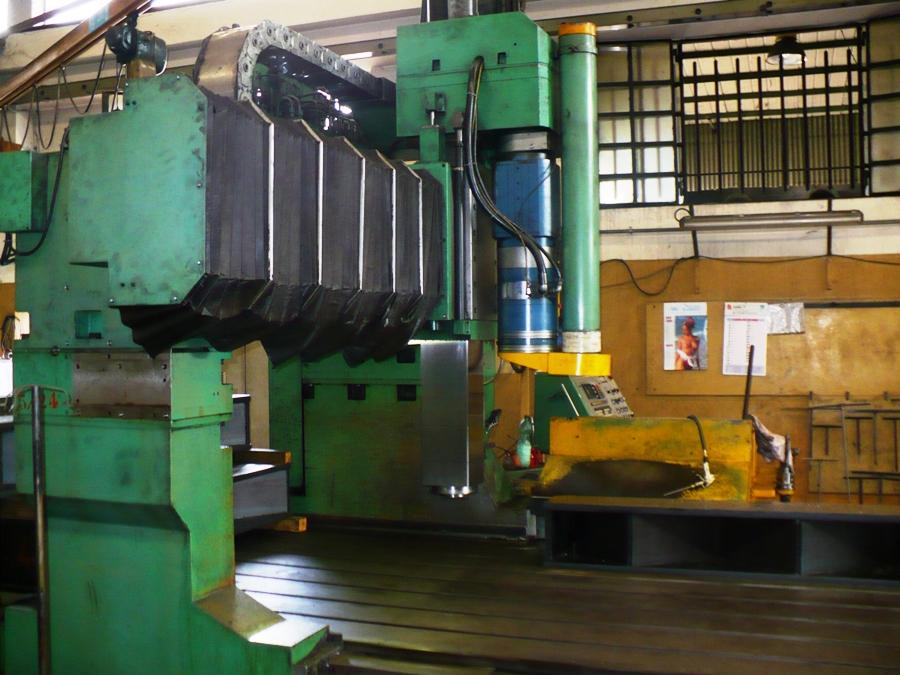

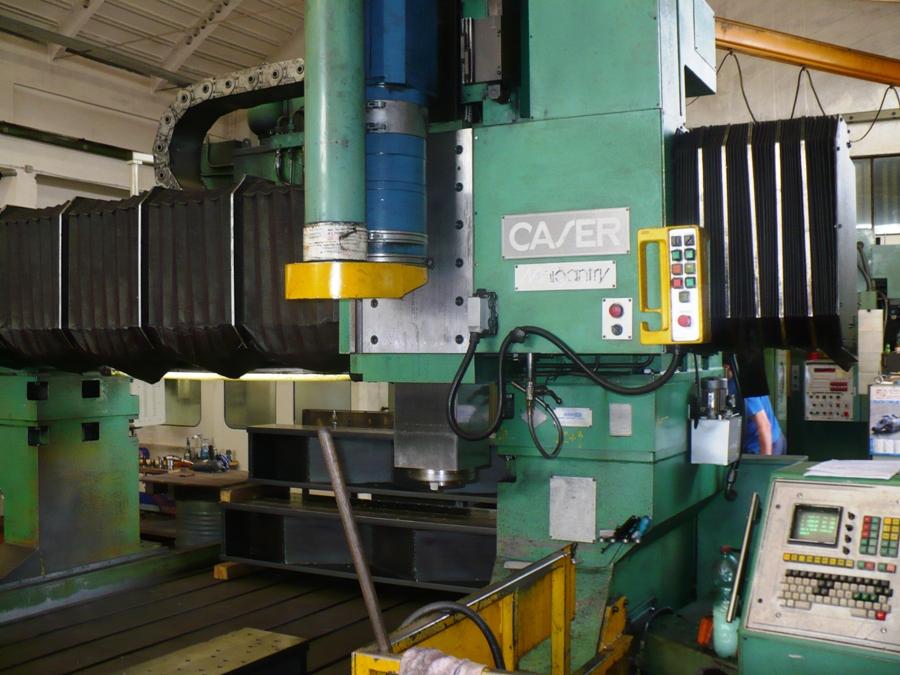

CNC Gantry milling CASER 6000 x 2300 #M150

SOLD Articles, All Machines

Details :

Stock No M150
Machine type CNC Gantry Milling Machine
Make CASER
Type 6000 x 2300
Newin
Control CNC - as retrofit
Location Europe
Country of origin Italy
Term of delivery at Immediate
Quotation Free-loaded; Container/Truck
Price
Technical details
Table size 8000 x 2500 mm
X-travel - Longitudinal 8000 mm
y-travel - Cross Travel 2200 mm
Distance between column 2300 mm
Z-travel (Ram stock) 600 mm
Min Distance between spindle - Table 400
Max Distance between spindle - Table 1000 mm
Tool taper SK50
Spindle speed (two step) 6 - 1800 rpm
Spindle motor power 15 kW / 20 HP
Total connected power 50 Hp

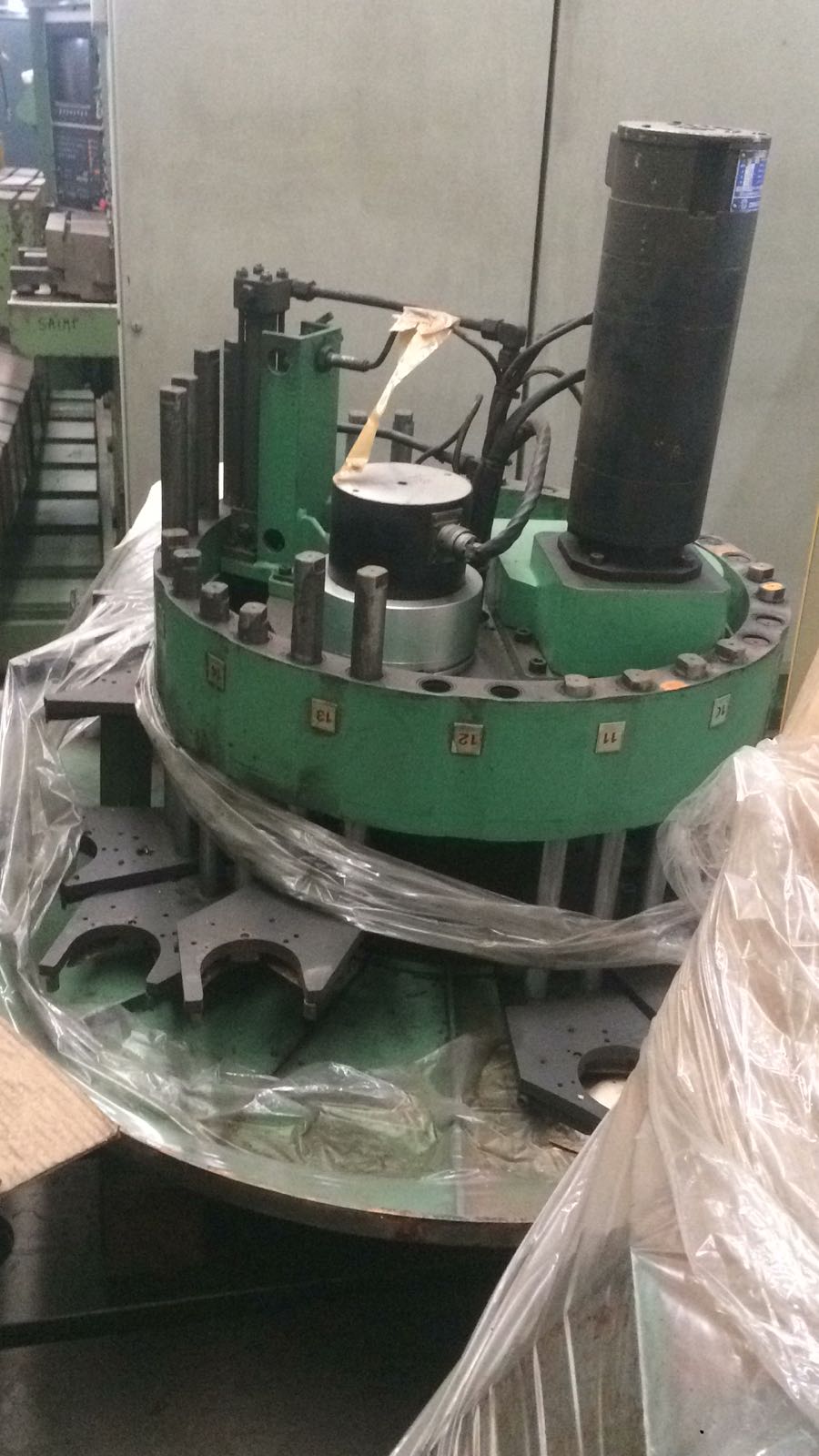

Tool changer unit 16 Places
Angular head - fix position 90 degree
Angular head tool type SK50
weight of the machine ca. 30 t
dimensions of the machine ca. 8,4 x 4,2 2x 3,97 m
  • Hydrostatic Guideways
  • All axis & tool changer with servomotors
  • Vertical height under rail can be increased by additional packing

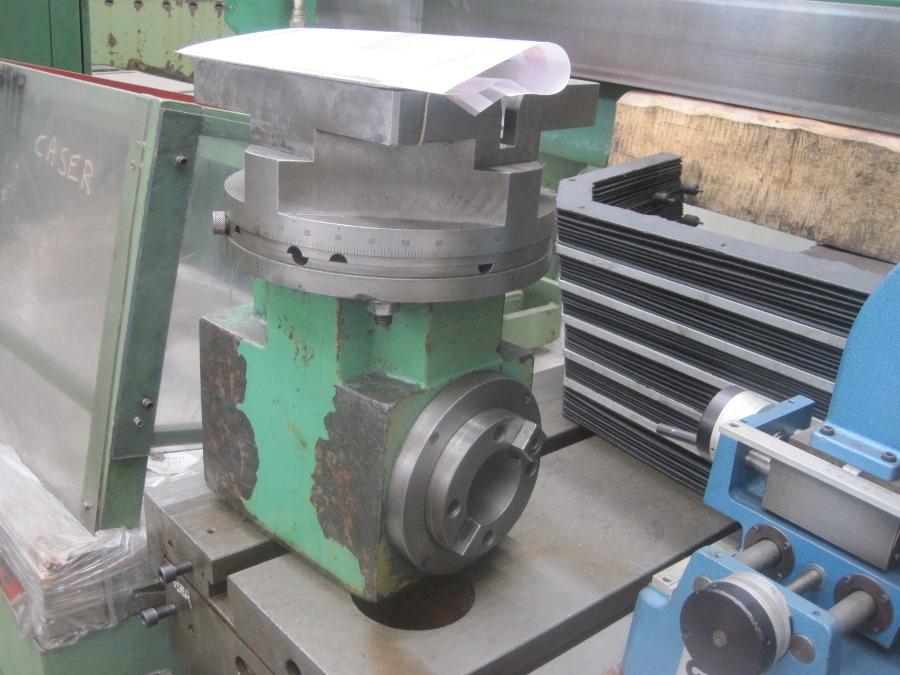

  • With Angular head fix position 90 degree
