Details :

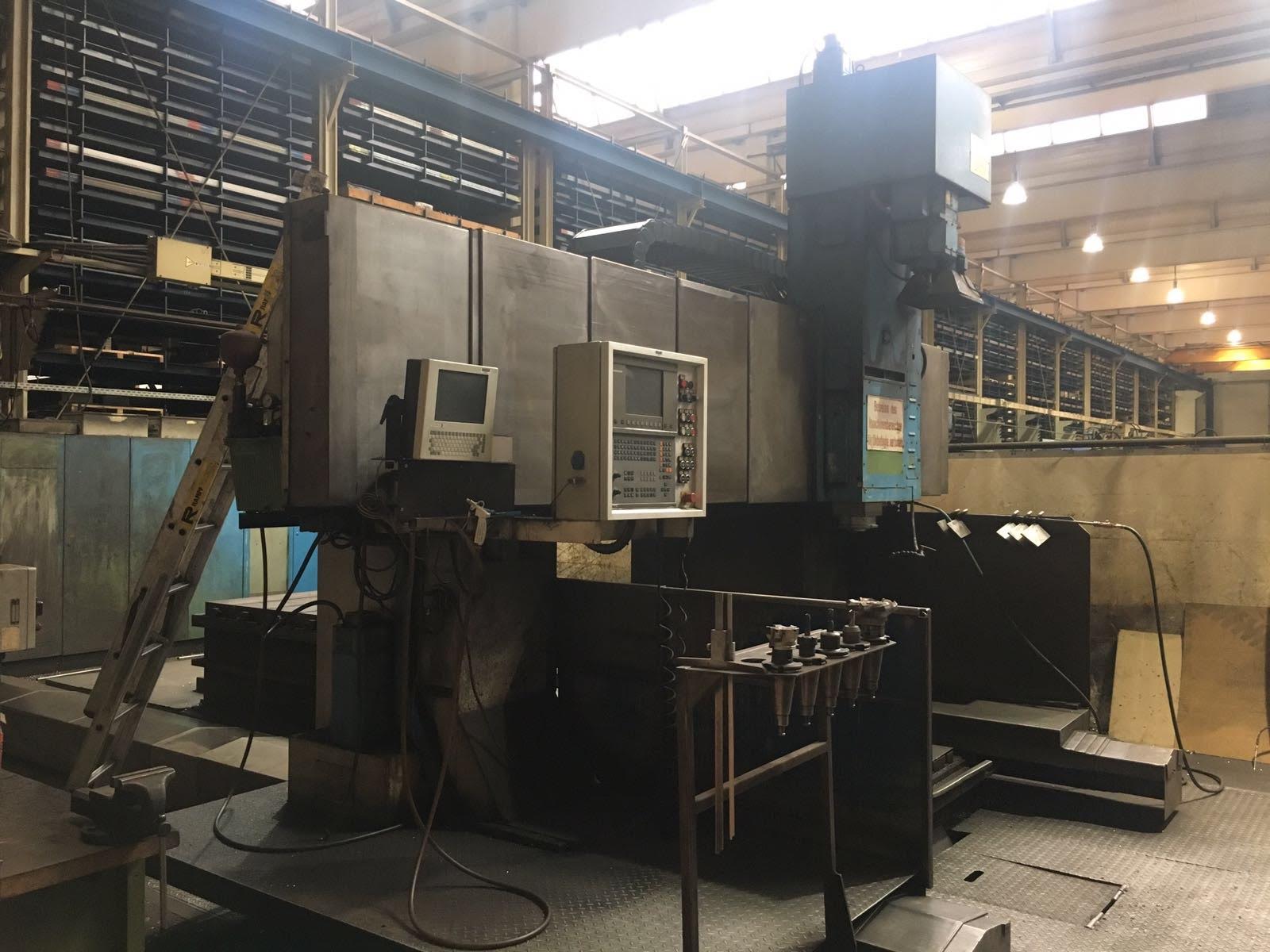

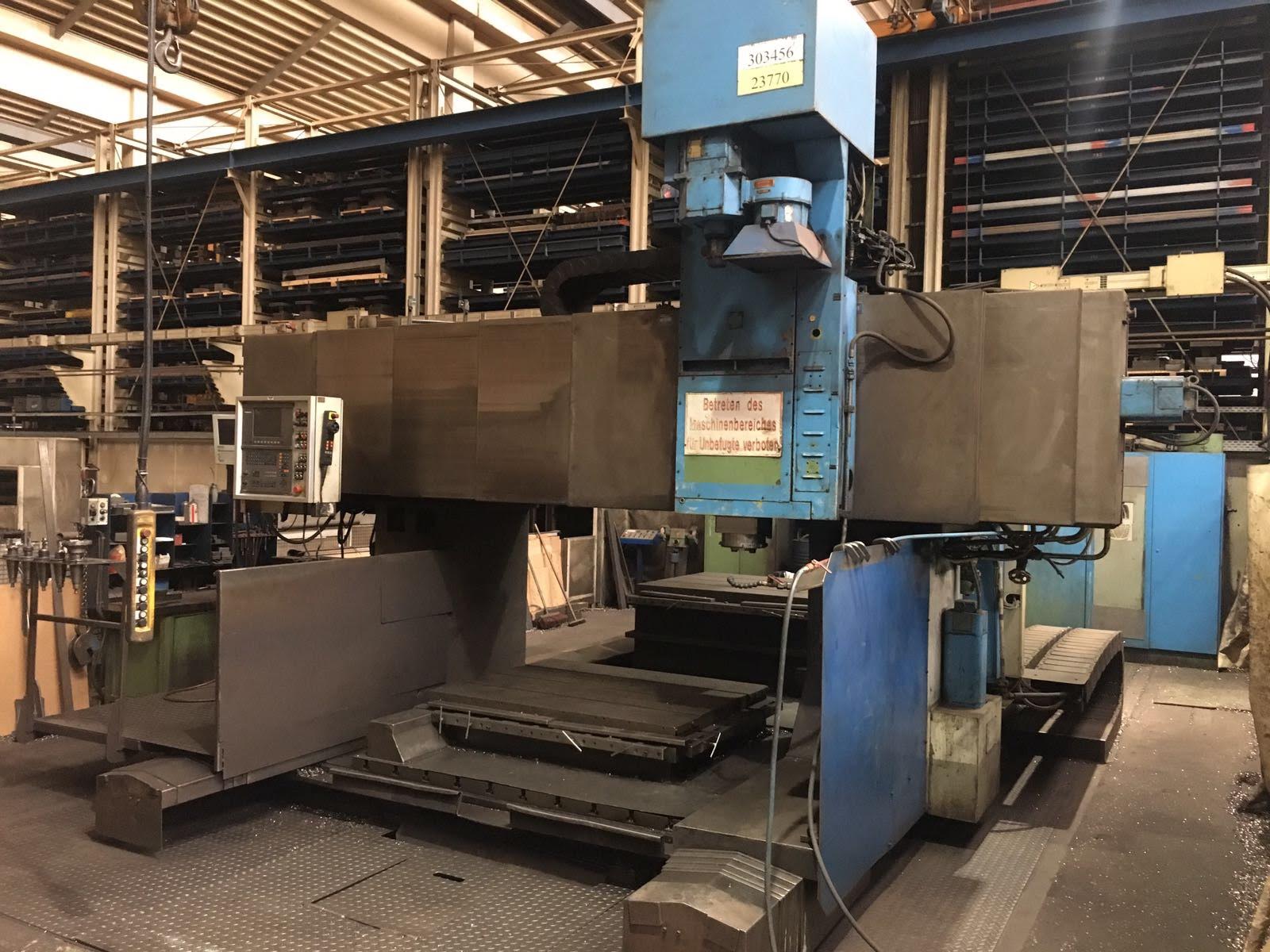

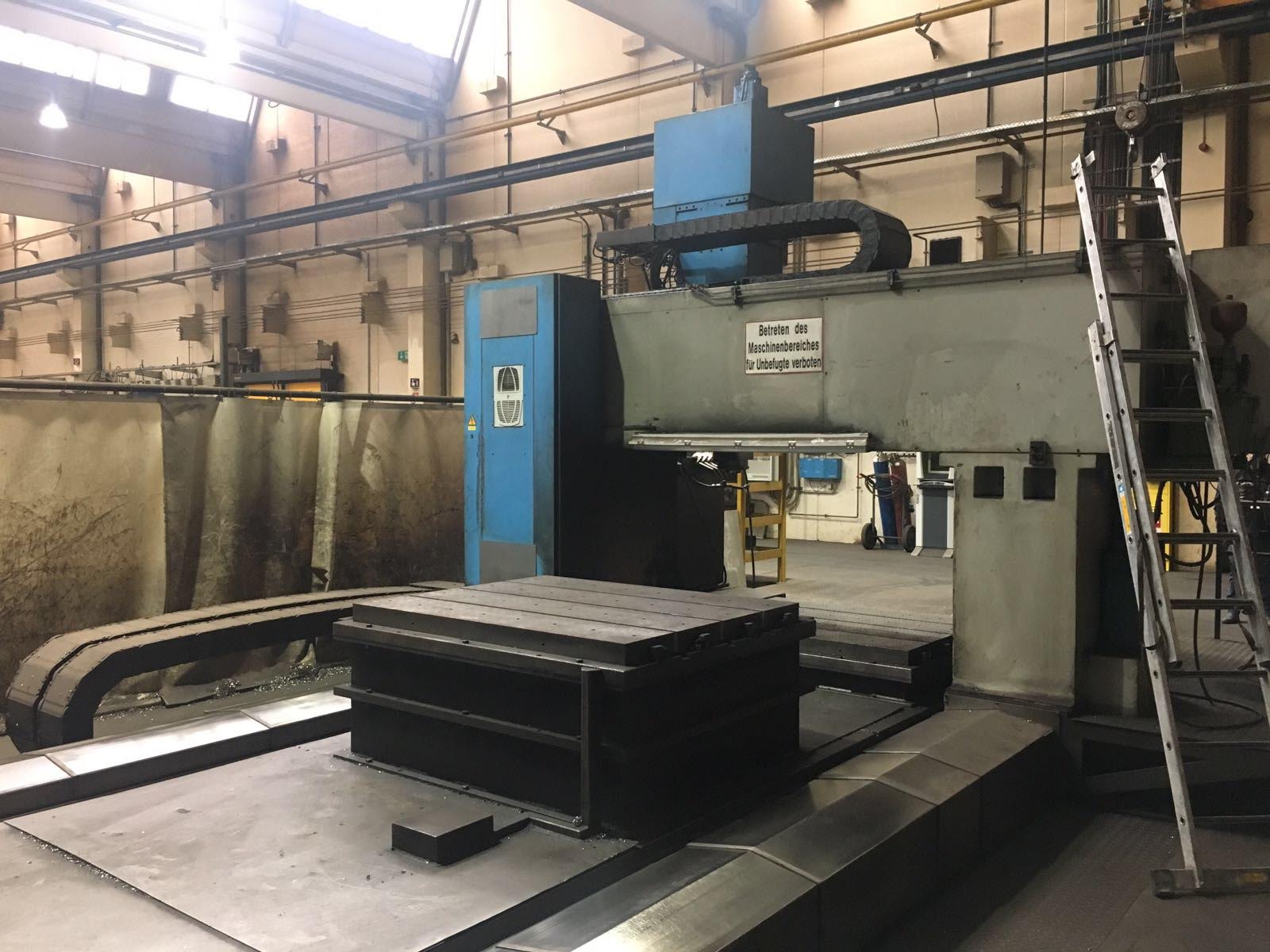

CNC Coordinate Boring Machine
KOLB
Year of construction 1982

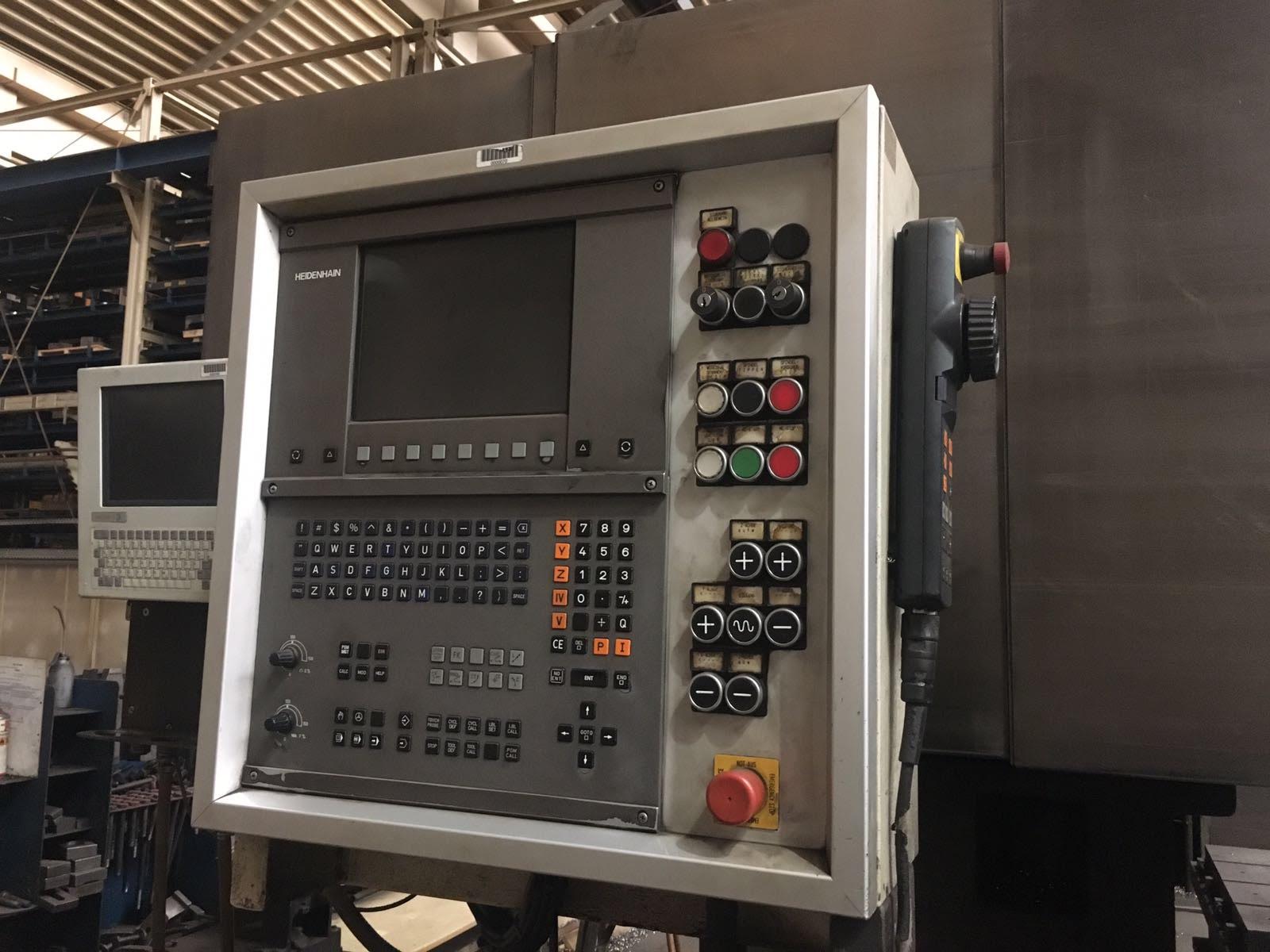

CNC control HEIDENHAIN TNC 426
Workspace:
X axis 4000mm
Y axis 2300mm
Z axis 750mm
Free passage between stands 2300mm

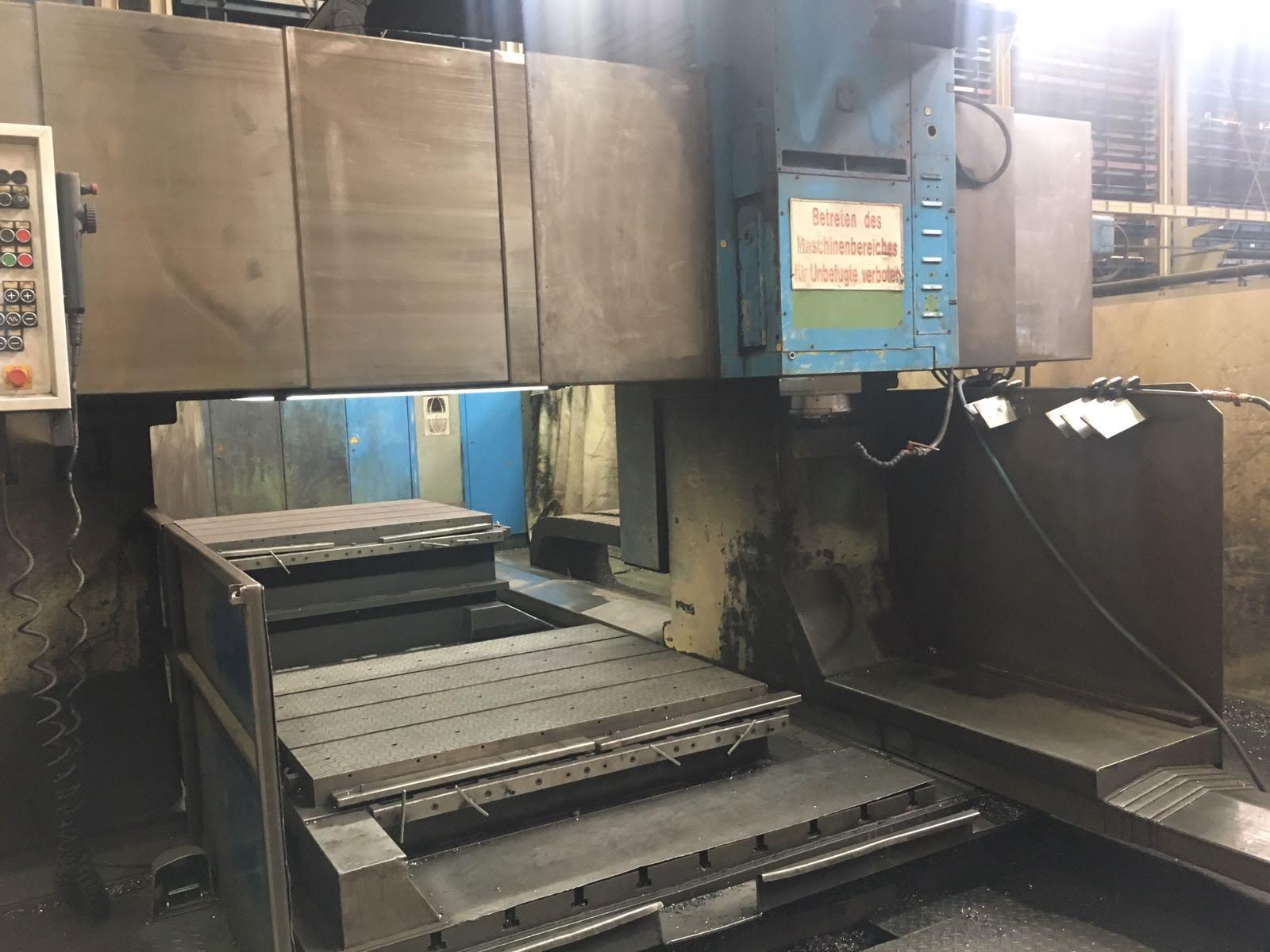

Table area 6000 x 2000mm
Table load 7000 kg
Milling spindle power max. 60 kW
Spindle torque max. 2090 Nm
Spindle speeds 35 - 3550 rpm
Tool holder ISO 50 DIN 2079
Space requirement: 8000 x 6000 x 5400mm
Weight: approx. 35000 kg
