FPT AREA 2009 X=12000 mm, Y = 3500 mm CNC Milling and Boring Machine

Boring Machine (Floor Type), Recently Arrived, All Machines

Details :

Offer Heavy Duty Travelling Column CNC Floor Type Milling and Boring Machine
Make                     FPT
Type  Area EV8 M120
Year 2009
Control Heidenhain iTNC 530

Technical Details :

x-travel 12000 mm
y-travel  3500 mm
z-travel 1500 mm
Spindle power (S1-100%) 46 KW
Spindle Speed up to 4000 rpm
Spindle Cone ISO 50
ATC 120 places
Feeds  25000 mm/min
Head changer 3 places

Other Details :

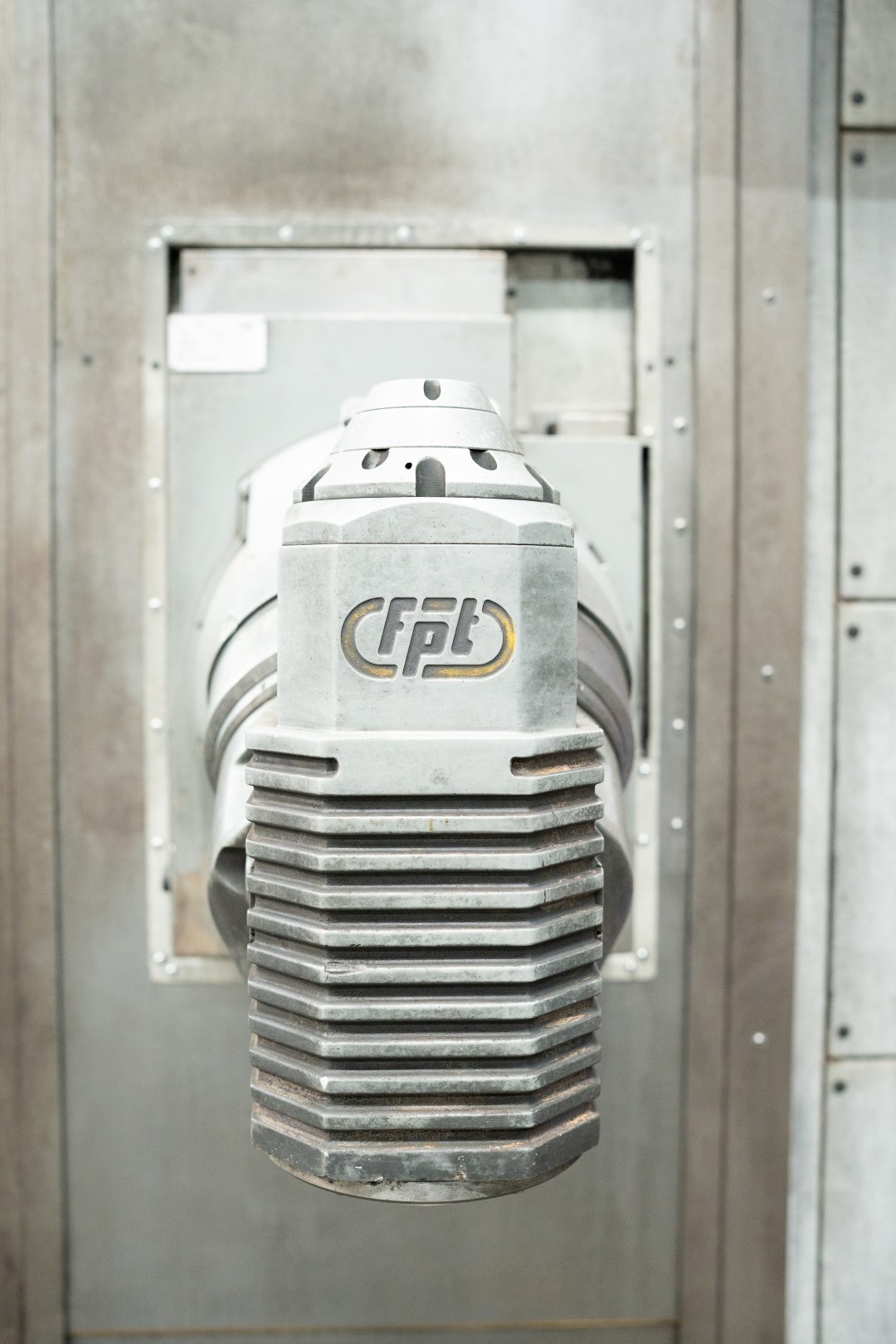

1. Automatic programmable head TUPCG
2. Spindle extended horizontal head SELS4 400 mm extension
3. Spindle extended horizontal head SELS6 700 mm extension



Options and extras:
- Coolant through spindle
- Chip conveyor
- 2 pcs. Angle Plates
- Floor plates area 12000 x 4000 mm
- Hydrostatic axis

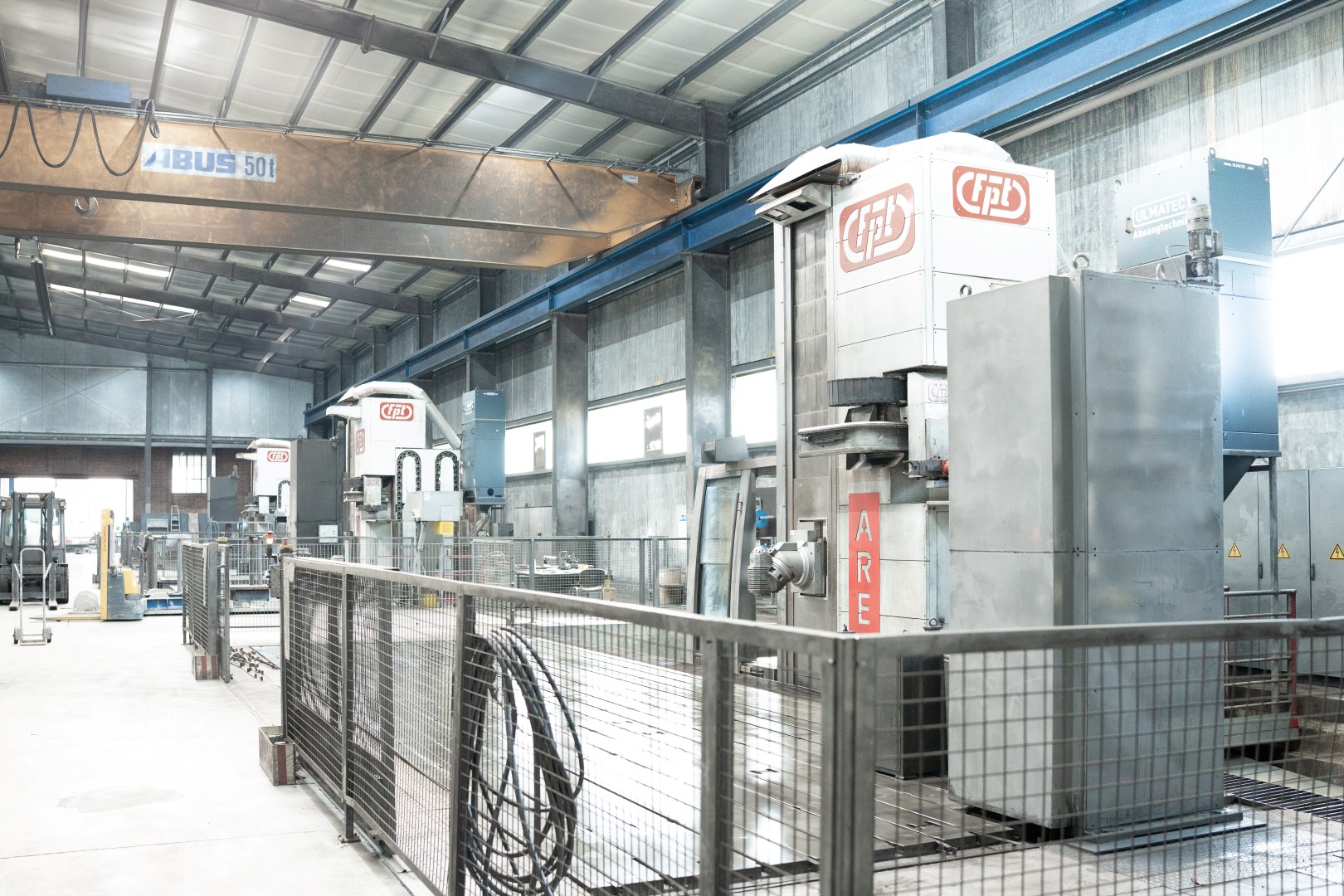

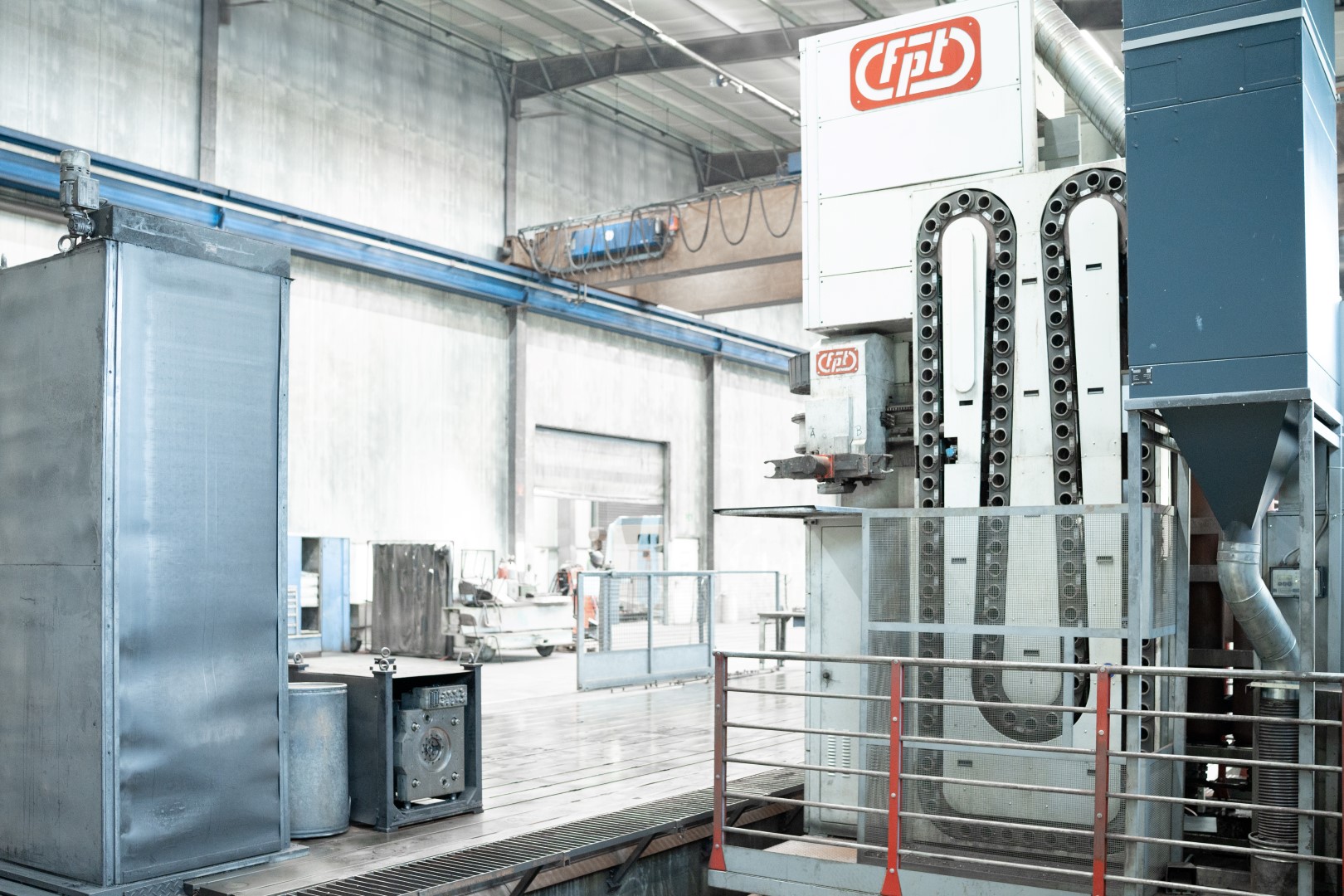

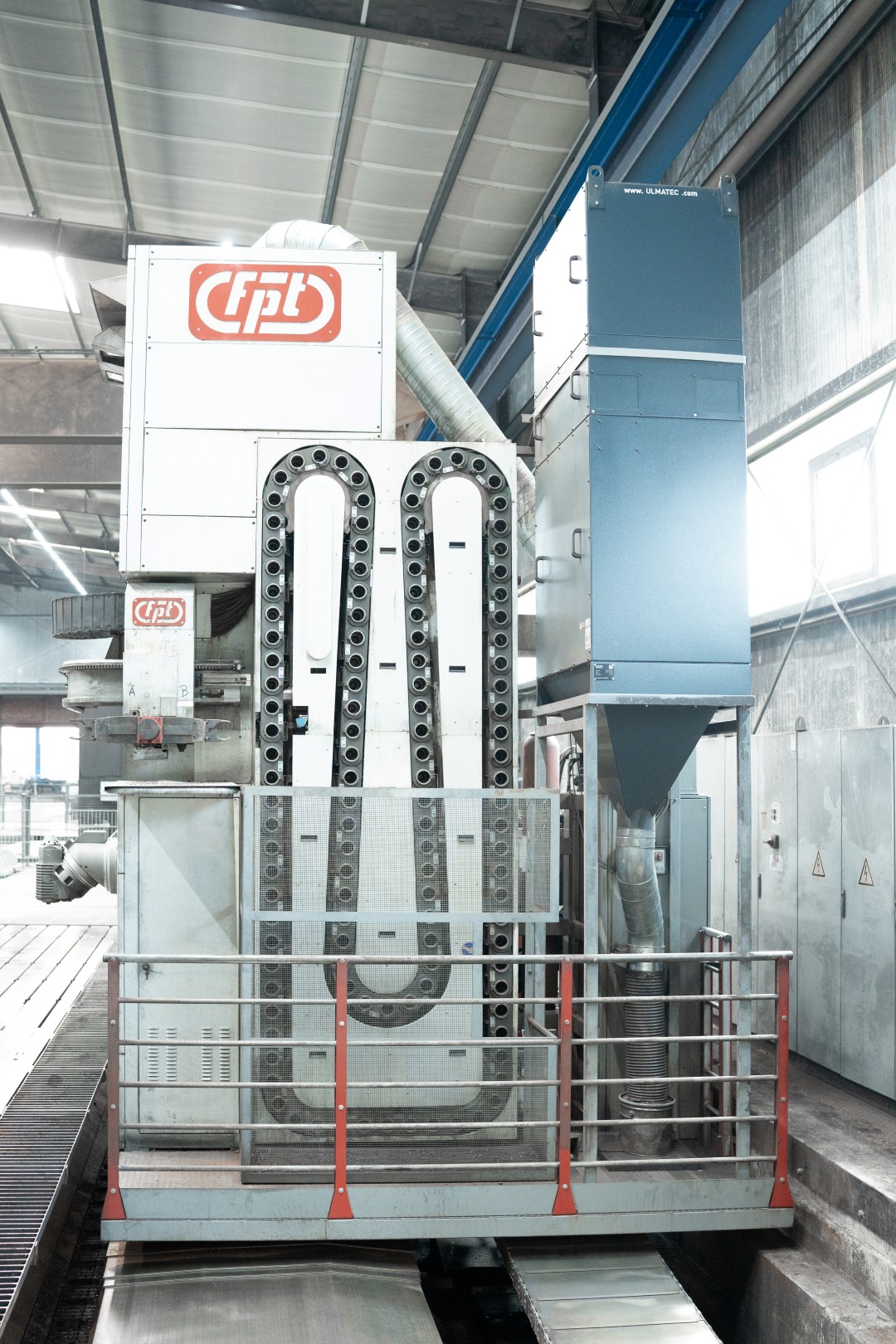

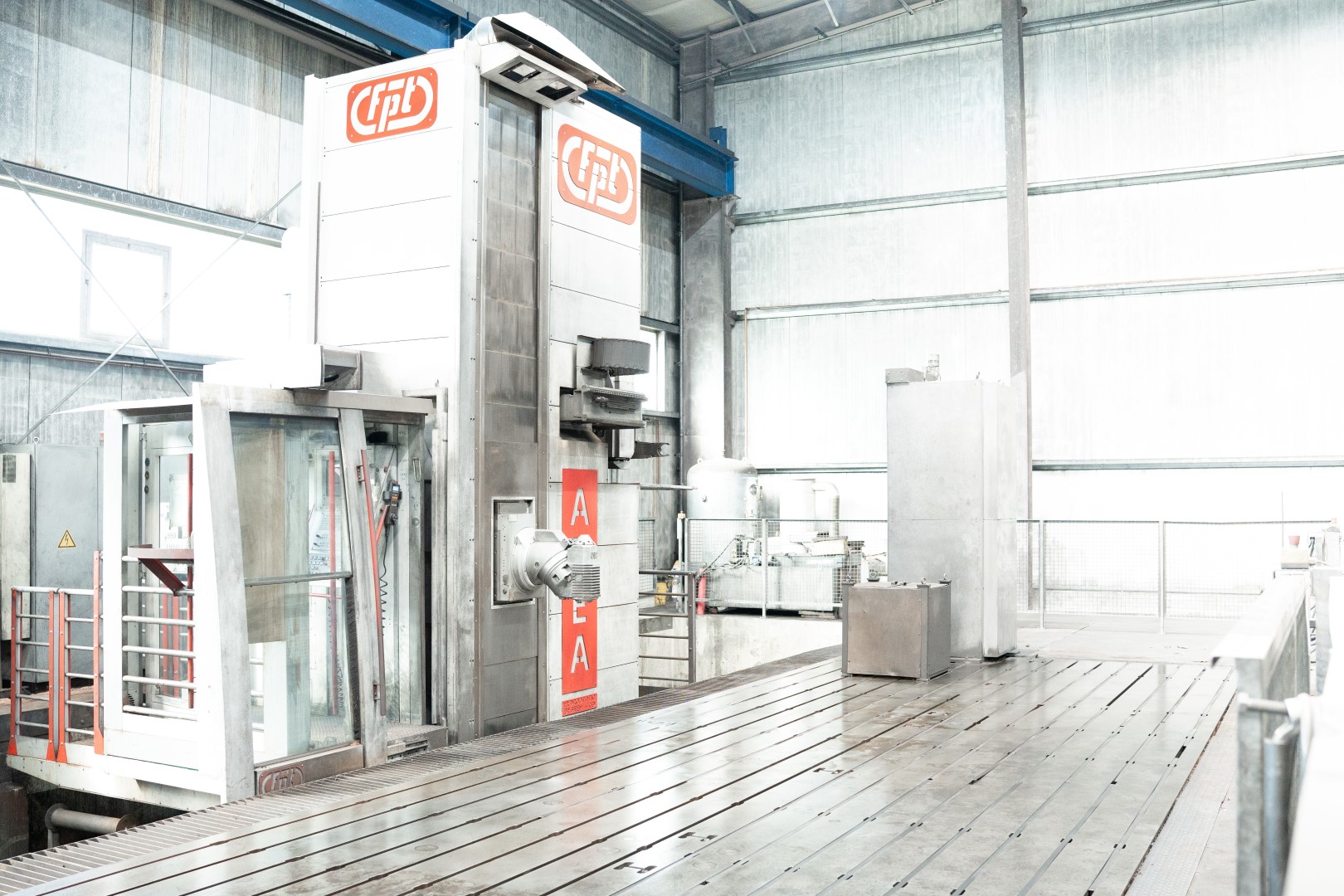

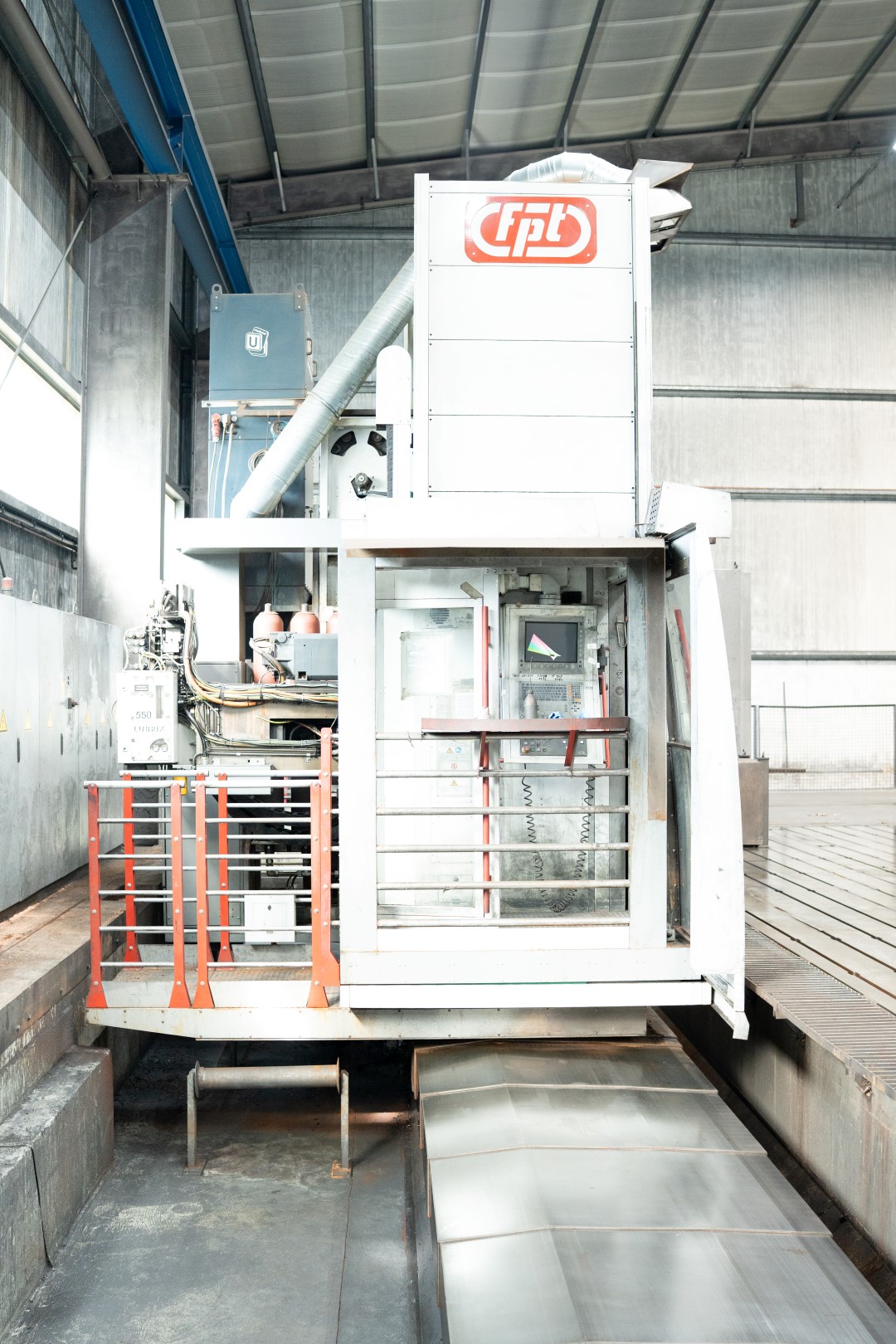

Machine Gallery :
