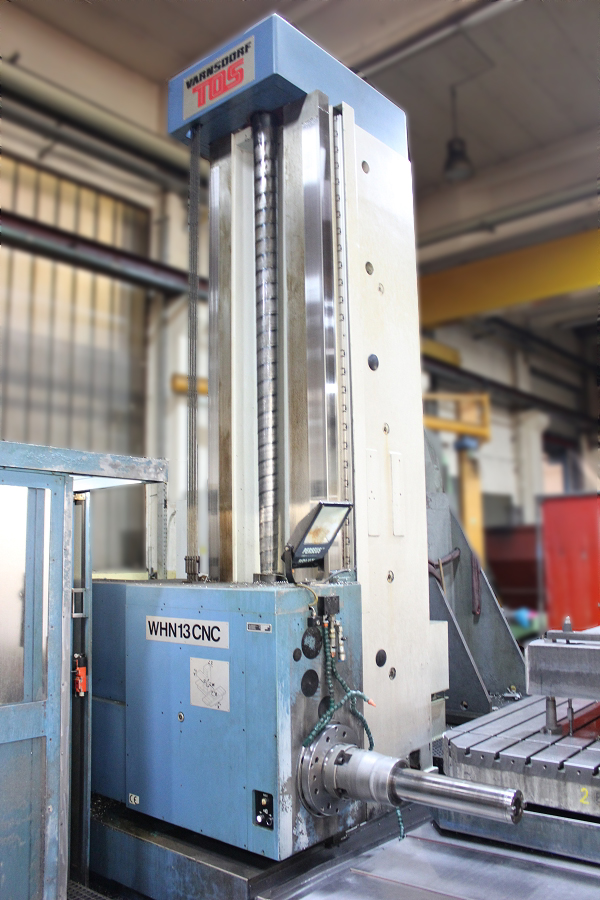

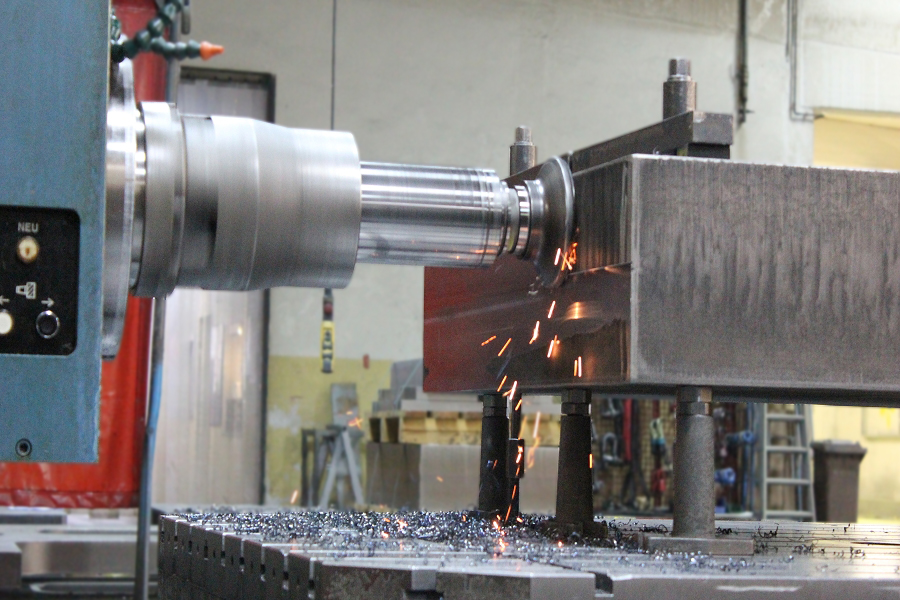

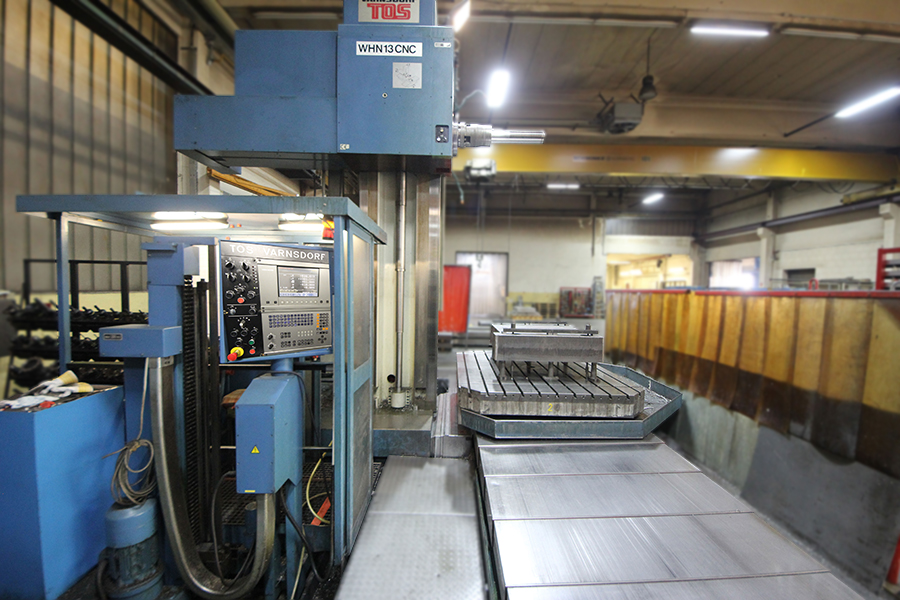

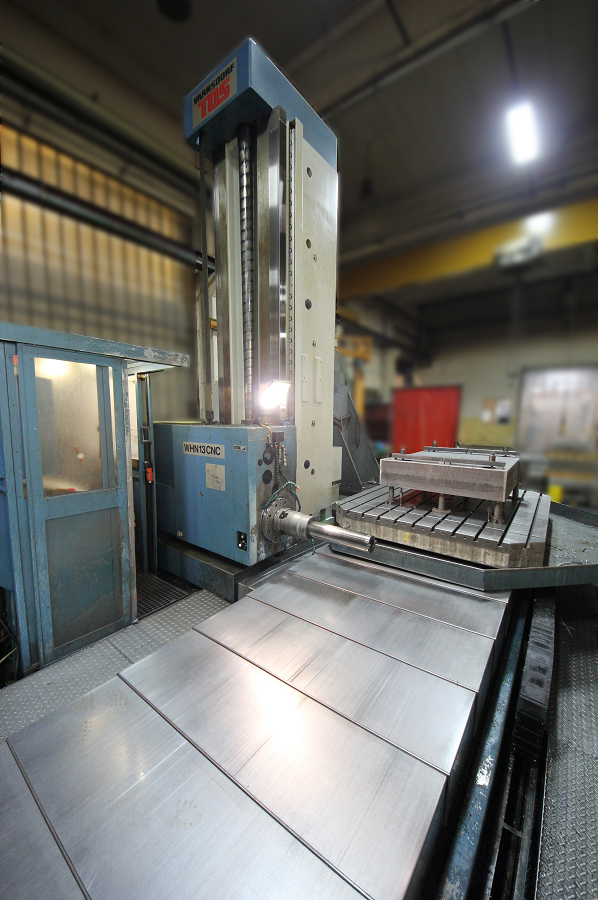

spindle diameter |
130 mm |
x-travel (Cross adjustment of the table) |
3500 mm |
y-travel (Vertical adjustment of the headstock) |
2500 mm |
Z-Travel (Longitudinal adjustment of the stand) |
1250 mm |
W-Travel (Expulsion of the working spindle) |
800 mm |
Table size |
1800 x 2200 mm |
Table load capacity |
12000 kg |
Spindle speed range |
10 – 2800 rpm |
Main spindle motor |
37 kW |
spindle cone ISO |
ISO 50 |
Table indexing |
Full axis |
Working feeds of the machine groups X, Y, Z and W |
4 – 6000 mm/min |
Working feed of the machine group B |
360 grad/min |
Max. torque of the shaft (up to the rated speed) |
1271 Nm |
Tapping of the position of the machine groups X, Y, Z and W |
elektrooptisch linear |
Tapping of the position of the machine groups B and C |
elektrooptisch rotations-feedback |
Number of NC-controlled machine groups |
5 |
Number of NC-positioned machine groups |
2 |
Number of hydraulically clamped machine groups |
4 |
Max. feed forces X, Y and W |
30 kN |
Max. feed force Z |
40 kN |
Max. lifting capacity of clamping B |
25 kN |
Weight of the Machine |
38650 kg |
