Details :
| Stock No | 1133-Z156 |

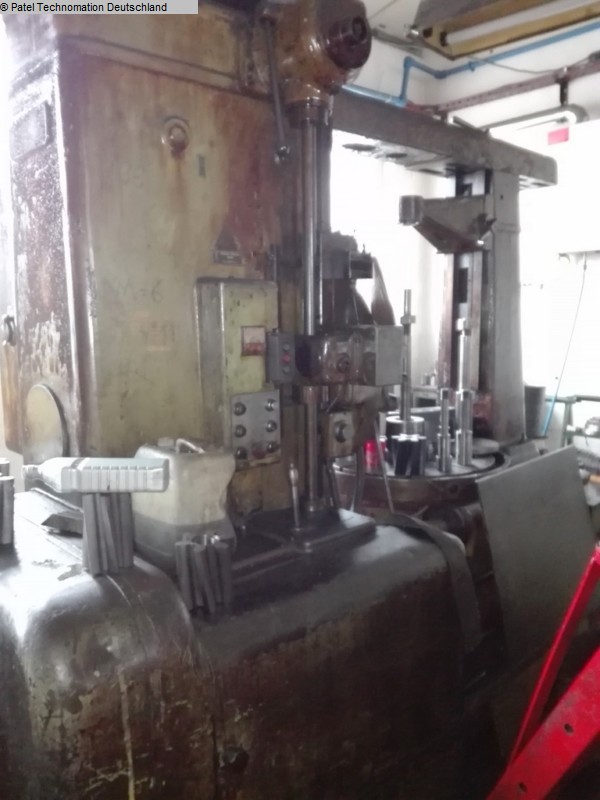

| Machinetype | Gear Hobbing Machine - Vertical |

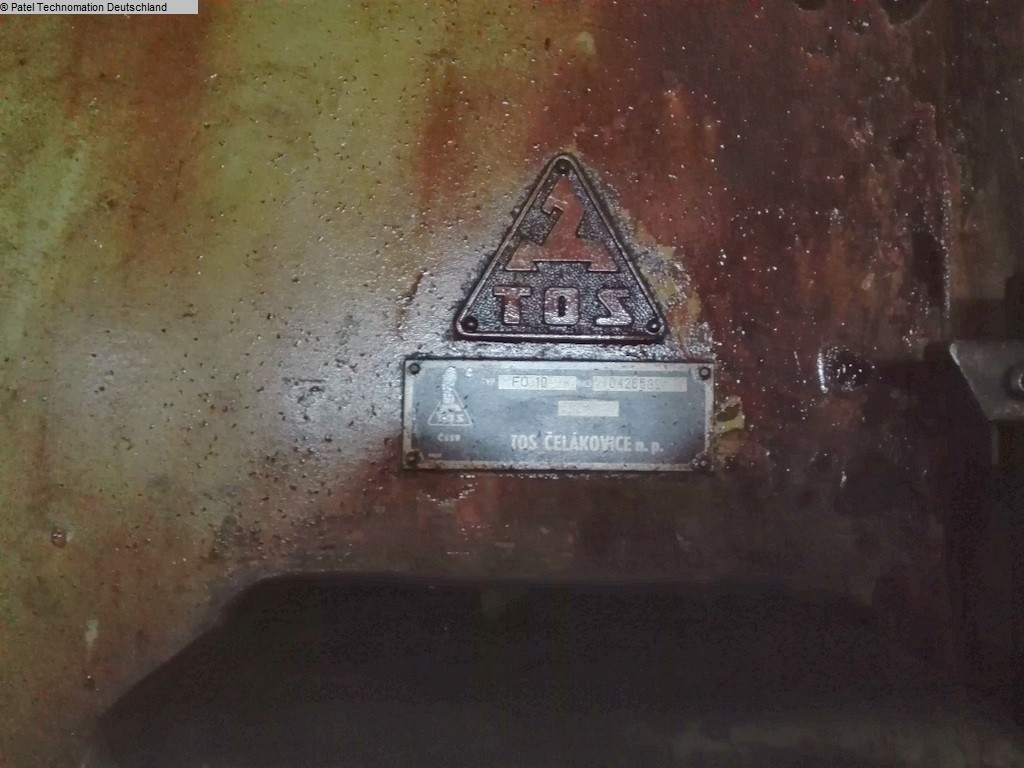

| Make | TOS |
| Type | FO10 |
| Newin | |
| Control | konventionell |
| Location | Czech republic |
| Country of origin | Czech Republic |
| Term of delivery | on request |
| Quotation | Free loaded; Container/Truck |
| Price | 0.00 EUR |
Technical Details :
| max. wheel diameter | 1000 mm |
| gear width | 400 mm |
| max. module | 10 |
| clamping table | 750 mm |
| main drive motor | 7,5 kW |
| dimensions of the machine ca. | 3.1×1.9×2.5 m |
| weight of the machine ca. | 8,7 t |
Other Details :
- The largest module cutter wheel 10
- The largest diameter cutter wheel
- using opera Stand mm 750
- opera without stand mm 1000
- The greatest width of milled round
- the wheel diameter less than 850 mm 400 mm
- the wheel diameter more than 850 mm 350
- The smallest number of milled teeth 12
- Distance milling spindle and table surface mm 280-740
- Distance axis milling spindle and clamping mandrel mm 50-720
- Clamping table mm 850
- Bore 100 mm clamping table
- The depth of drilling 360 mm clamping table
- Diameter 32.40 mm Mandrel Mill
- Clamping pin 50 mm
- Rotation speed milling spindle
- number of grades 9
- minimum range – 1 20-125
- Vertical feed milling slide
- number of degrees in 1936
- range of 1 mm, table speed of 0.2 – 6
- Tangential feed milling slide
- number of degrees in 1936
- Range table speed of 1 mm, 0.133 – 4
- Longitudinal displacement clamping table
- number of degrees in 1936
- range of 1 mm, table speed from 0.05 to 1.5
- Move the milling way partitioning tool from 2.5 mm min -1
