Details :

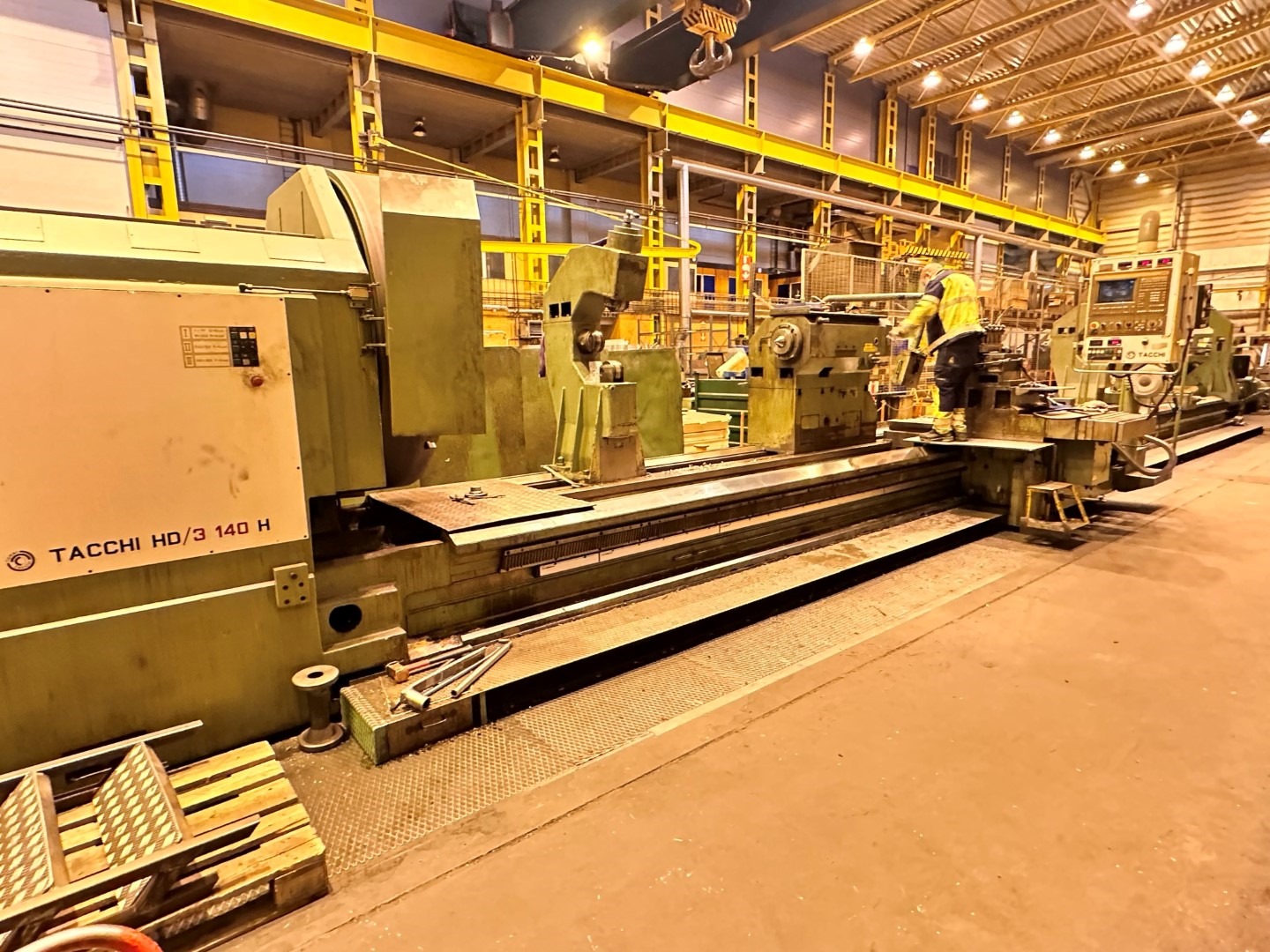

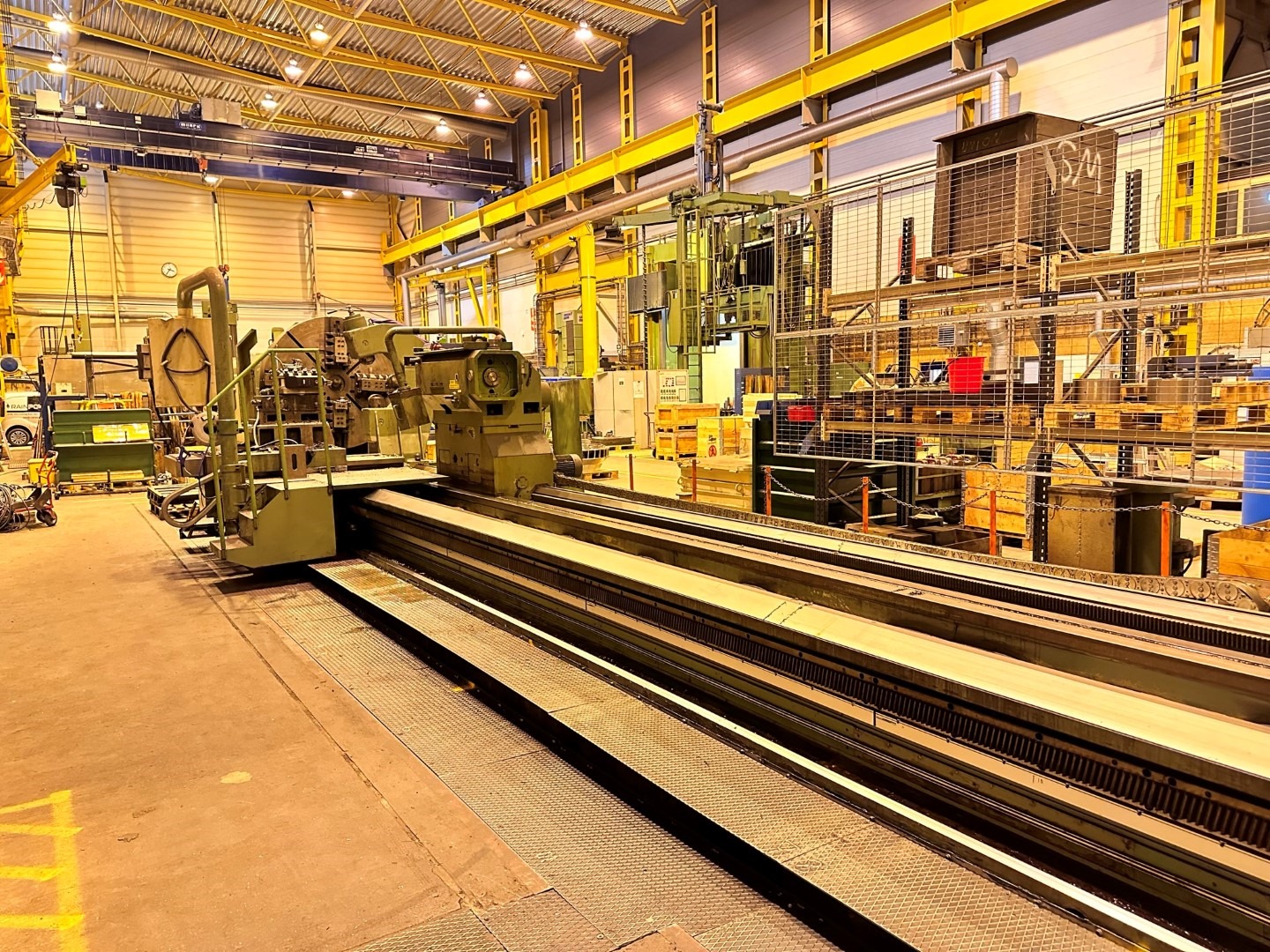

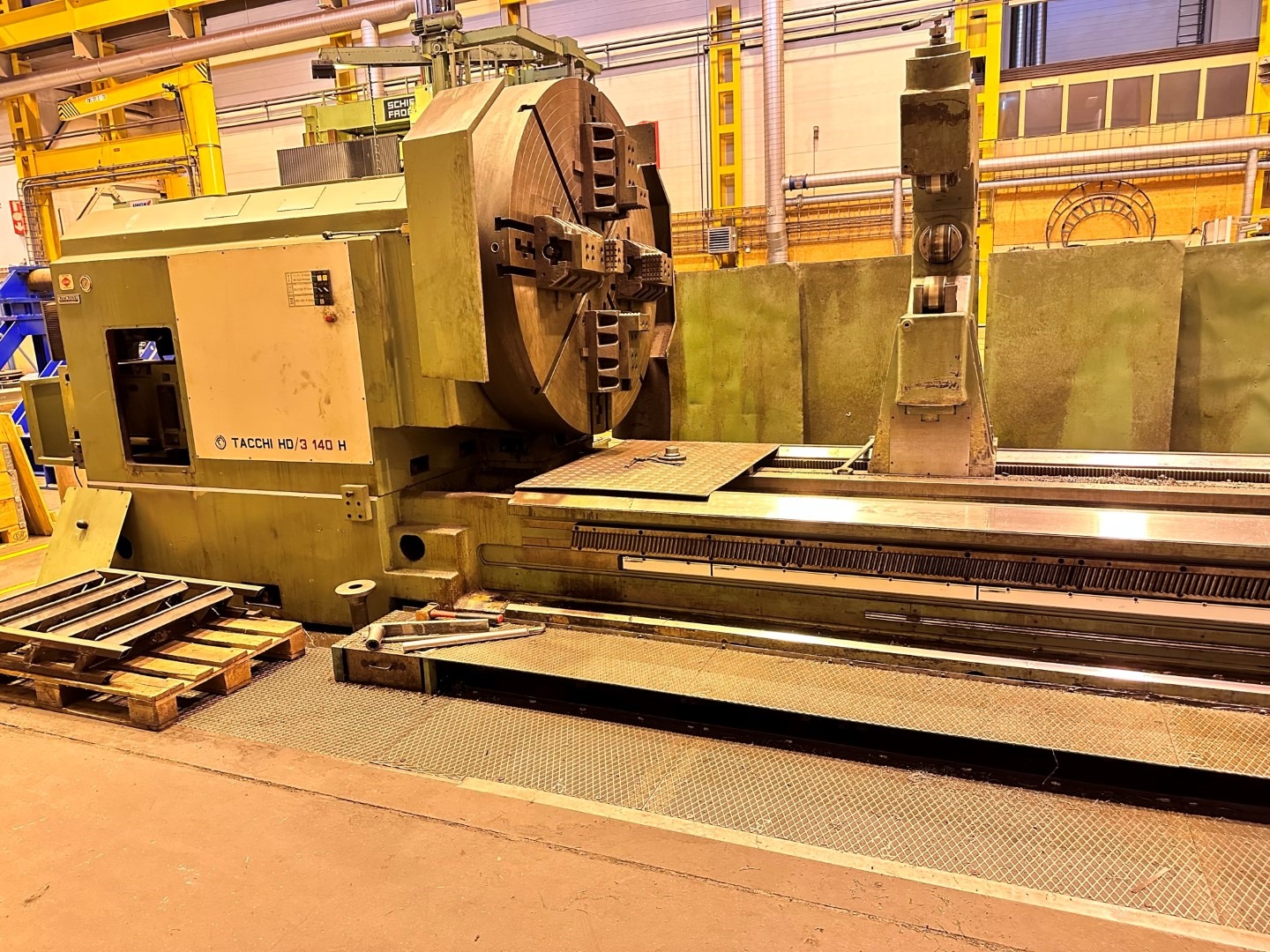

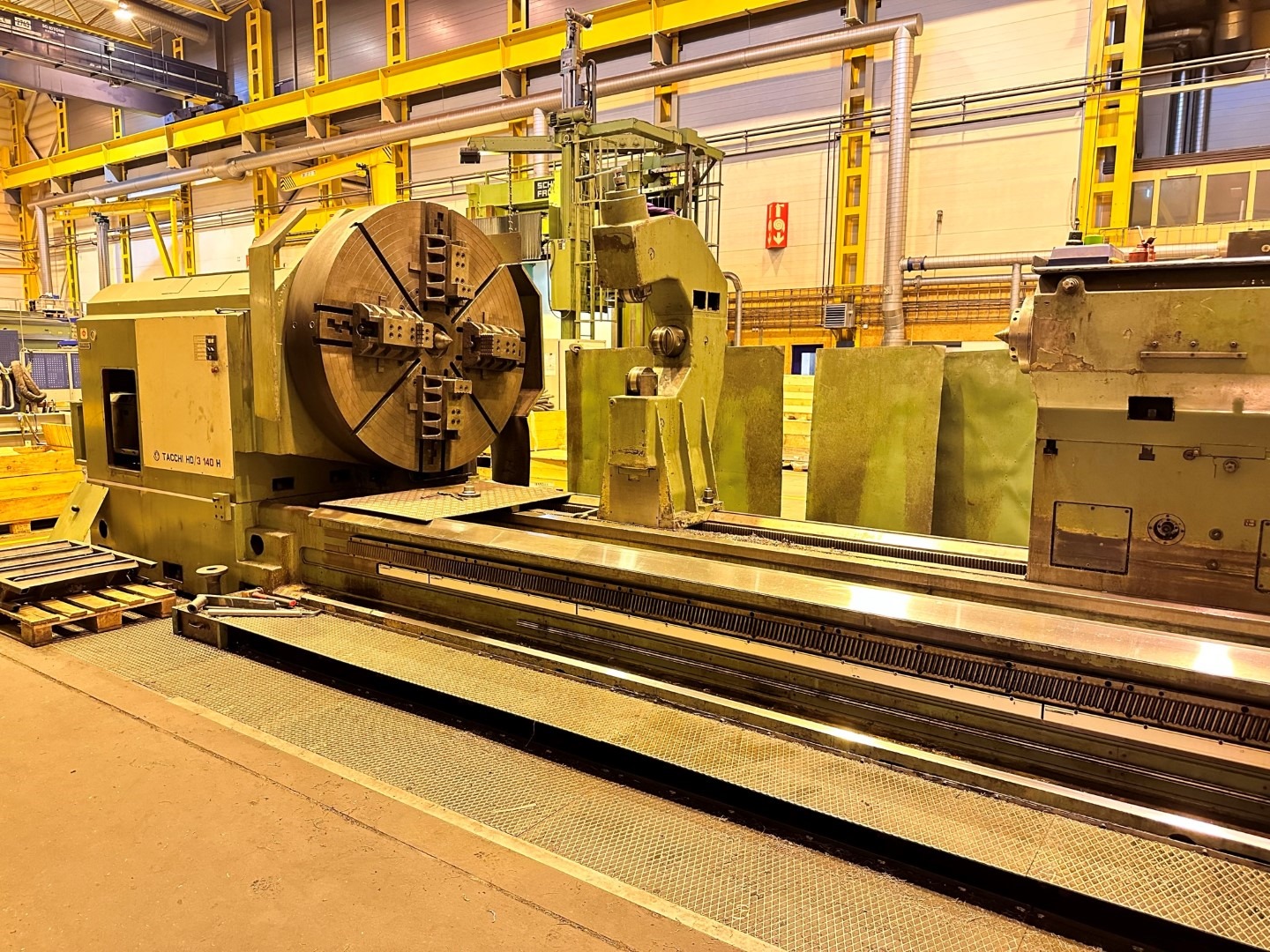

| Make | Tacchi |
| Type | HD/3 Serie 140 |
| Year | 1989/1990 |
| Control | Siemens 850-T |
Technical Details :
| Max. Dia over Bed | 1970 mm |
| Max. Dia over Crossslide | 1640 mm |
| Chuck Dia | 1700 mm |
| Max. Turning Length | 13000 mm |
| Centre Height | 1010 mm |
| Cross slide travel | 840 mm |
| Rapid Feeds | 4m/min |
| Main motor power | 130 HP |
| Steplessly variable speed range | 0.8 to 240 rpm |
| Max. Spindle torque | 7200 Kgm |
| Spindle bore | 160 mm |
| Max. workpiece weight without steadies | 35 tonnes |
| C-axis positioning | 0.001° |
| Milling Spindle speed | up to 1300 rpm / SK 50 |
| Milling Spindle power | 20 KW Servo motor |
Other Details :
Machine comes with:
- 5 steady rests
- Milling head attachment

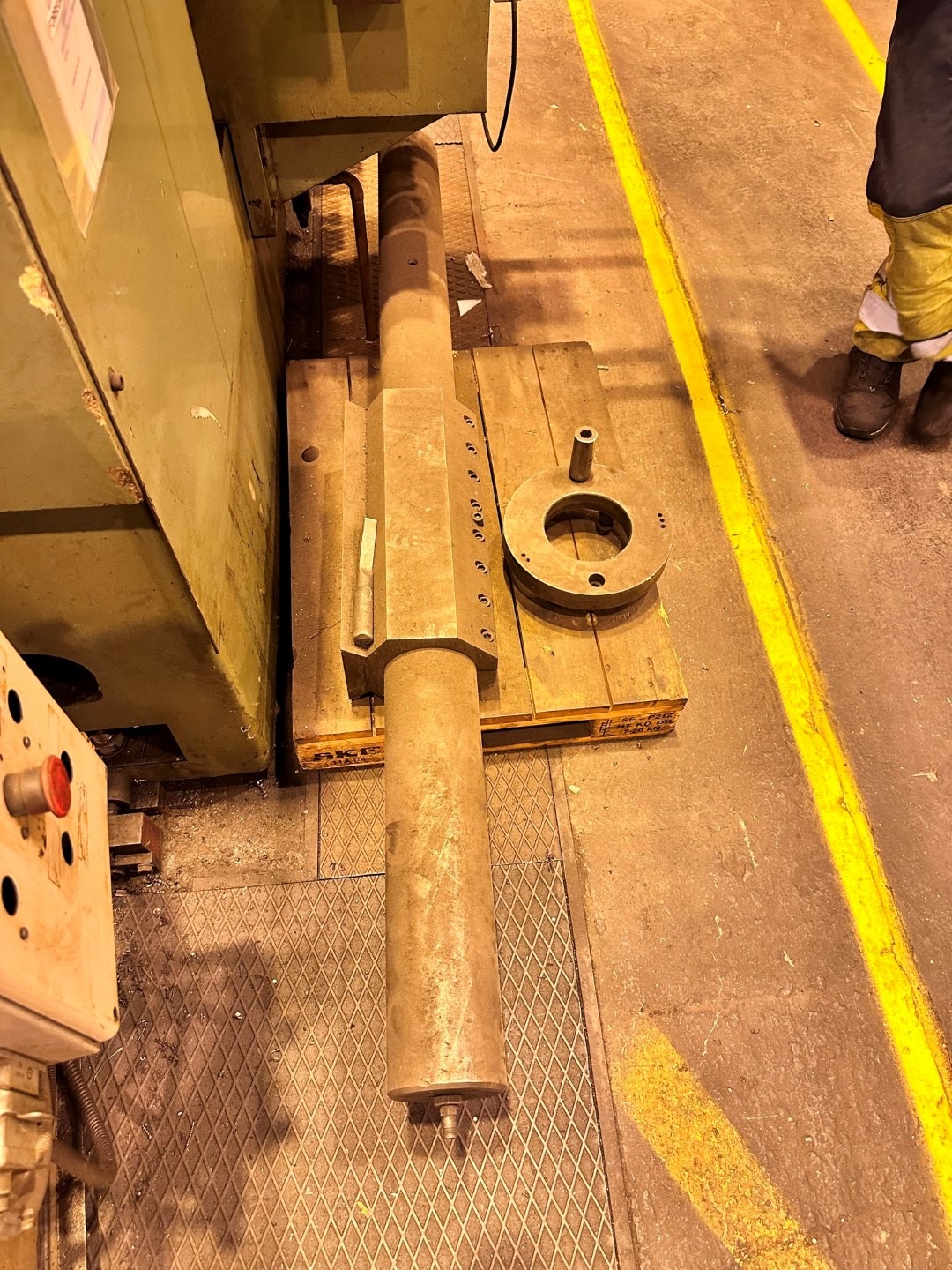

- Boring Bar
- Some standard spares
- Some tooling
- Chip conveyor
