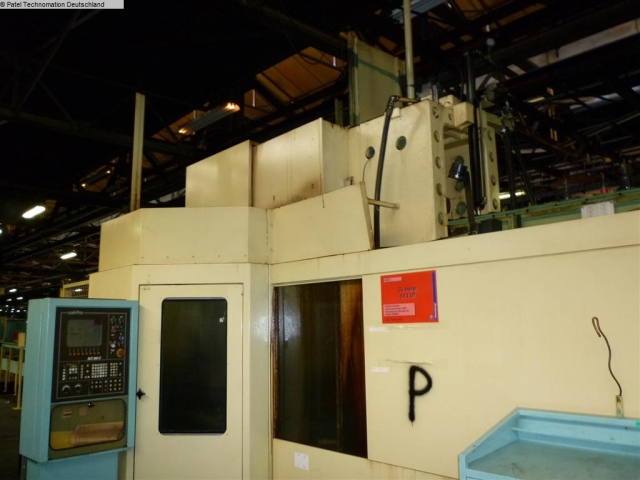

Machining Center Horizontal HELLER BEA 3 E194

SOLD Articles

Details :

Stock No 1133-E194
Machinetype Machining Center - Horizontal
Make HELLER
Type BEA 3
Newin 1990
Control CNC
Location Belgian
Country of origin
Term of delivery immediate
Quotation Free loaded on Truck/Flat
Price Auf Anfrage EUR



Technical Details :

travel -x axis 1250 mm
travel -y axis 800 mm
travel -z axis 1000 mm
table surface area 800 x 800 mm
control Uni-Pro 80 C
workpiece weight 1200 kg
working spindle speed range 45-4000 U/min
tool adaptor SK 50
feed 1-10 m/min
rapid traverse 15 m/min
palett changer - no. of dockets 2
palett changer- no. of paletts 2
electrics - voltage/frequency 380/50 V/Hz
power requirement 24 kW
weight of the machine ca. 25 t
dimensions of the machine ca. 6 x 3,5 x 3,4 m
tool piece magazine with 40

Other Details :

  • UniPro 80C; Pallet 800x800
  • Serial No 41129,
  •  Rebuilt 2005,

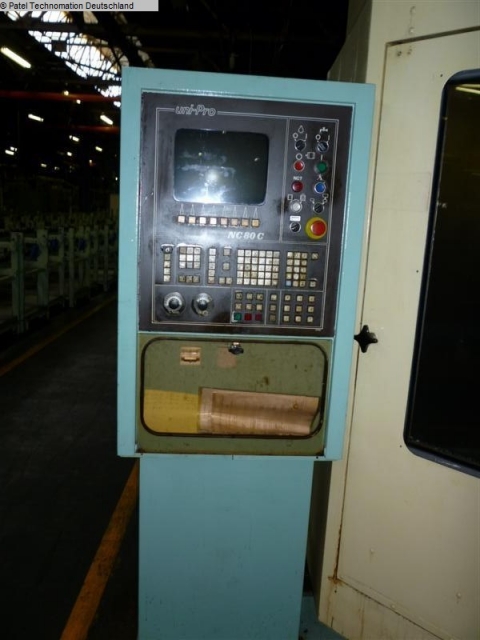

  • HELLER Model BEA3 with Siemens NC80C Uni-Pro Control,
  • Pallet Size 800 x  800mm,

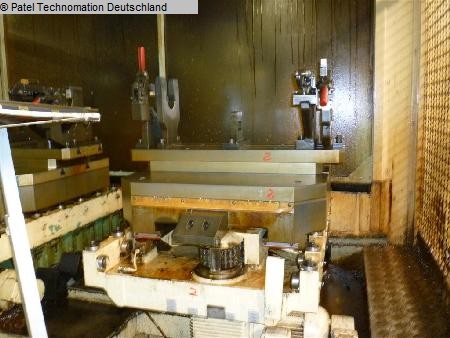

  • 360 x 1 degree table indexing,
  • 40ATC,
  • Swarf Conveyor,
  •  X= 1250,
  • Y=  800,
  •  Z=1000 mm,
  • Speeds 45-4000 Rpm,
  • Motor 24 Kw
