Details :
| Stock No | 1133-E177 |
| Machinetype | Machining Center- Horizontal |
| Make | MAKINO |
| Type | A55 |
| Newin | 1991 |
| Control | CNC |
| Location | United Kingdom |
| Country of origin | Japan |
| Term of delivery | Immediatly |
| Quotation | Ex site |
| Price | Auf Anfrage EUR |
Technical Details :
| x-travel | 560 mm |
| y-travel | 560 mm |
| z-travel | 600 mm |
| size of pallet | 400 x 400 mm |
| workpiece weight | 400 kg |
| max. workpiece diameter | 630 mm |
| tool taper | 40 BT |
| turning speed range - spindle | 50 - 12.000 U/min |
| power capacity | 18,5 kW |
| Torque | 167 Nm |
| feed range | 0-16000 mm/min |
| rapid travel range | 30 m/min |

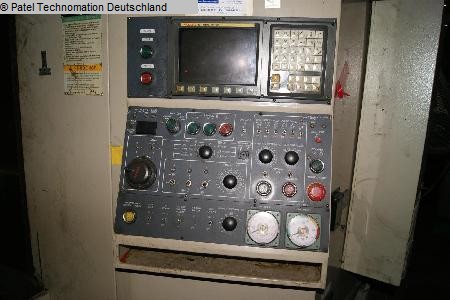

| Control | Fanuc 16i Professional 3 |
| Distance between table- spindel center, min-max. | 80 - 640 mm |

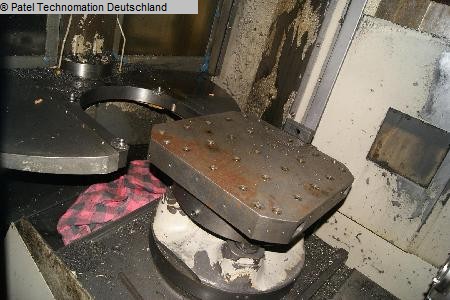

| table – indexing | 1° ° |

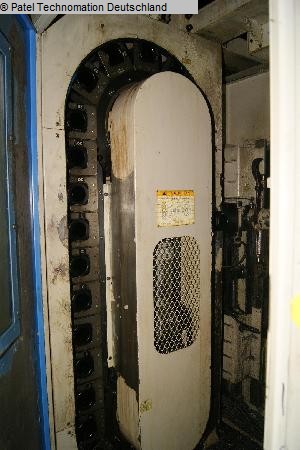

| workpiece tool changer | 99 Plcs |
| tool changing time | 15 sec |
| total power requirement | 50 kW |
| weight of the machine ca. | 12 t |
| dimensions of the machine ca. | 4,5 x 3,5 x 2,65 m |
