| x-travel |
3100 mm |
| y-travel |
1050 mm |
| z-travel |
1070 mm |

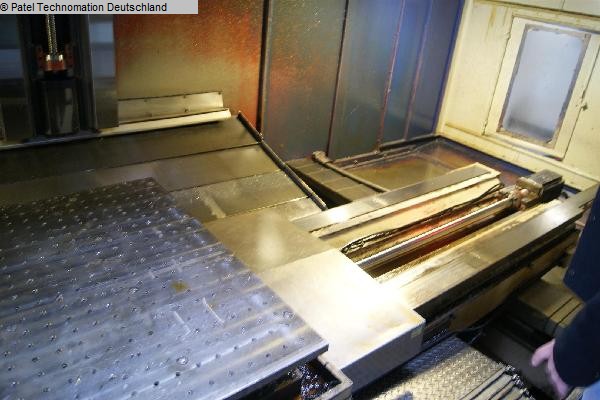

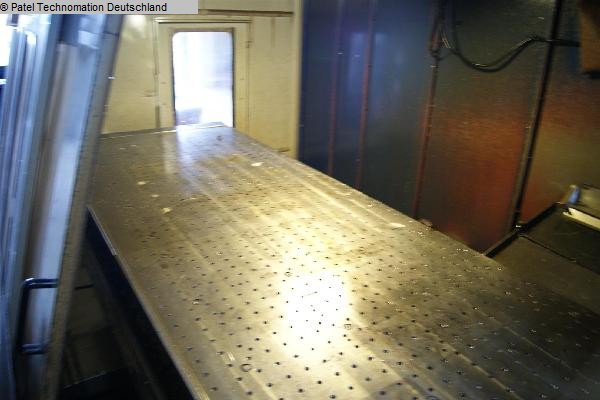

| Table size |
3100 x 1050 mm |
| dist. up to lower edge of vertical spindle |
90-1160 mm |
| spindle drive motor |
22 / 18,5 kW |
| spindle taper |
BT50 |
| spindle speed: |
20-3600 rpm |
| table load capacity |
4000 kg |
| CNC Controller: |
Heidenhain TNC 426 |

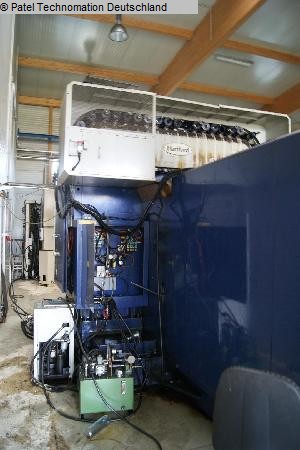

| toolpiece magazine: chain magazine |
40 Stück |

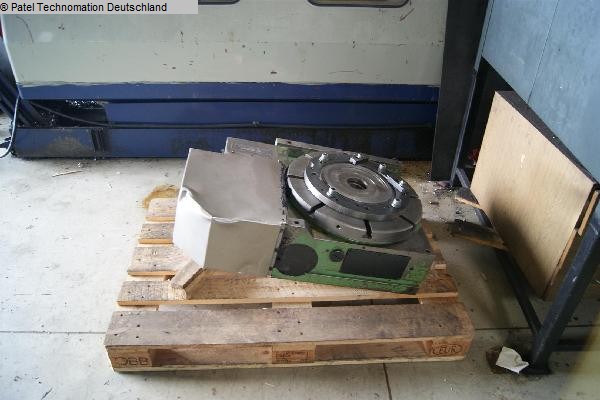

| rotary and dividing table: clamping area |
500 mm |
| rotary and dividing table: table load |
500 kg |
| rotary and dividing table: rotation |
0,001 Grad |
| total power requirement |
kW |
| weight of the machine ca. |
28 t |
| dimensions of the machine ca. |
7,8 x 3,6 x 3,5 m |
