Details :
| Stock-No. | 1133-S146 |

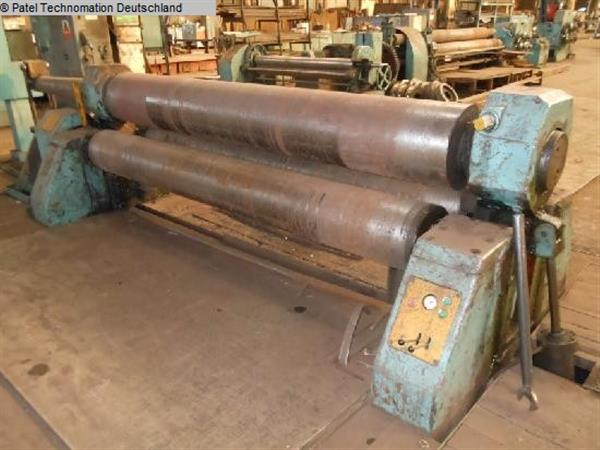

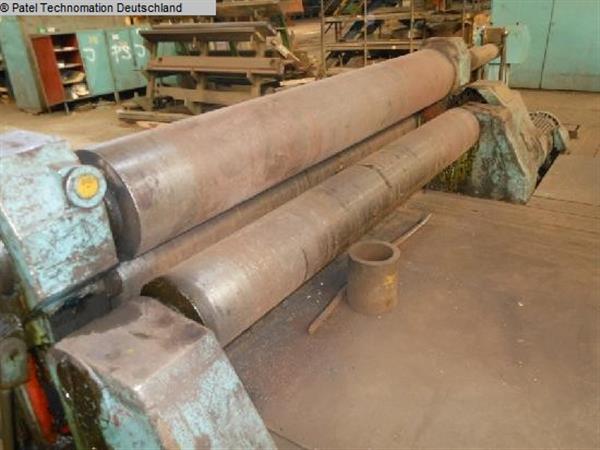

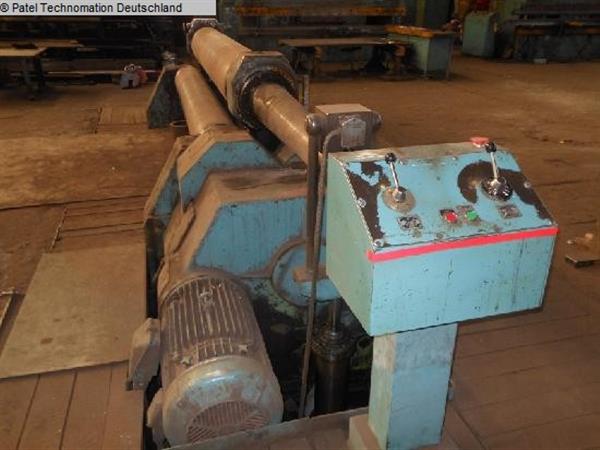

| Type of machine | Plate Bending Machine - 3 Rolls |
| Make | PIESOK |
| Type | 3000 x 25 |
| Year of manufacture | |
| Type of control | konventionell |
| Storage location | Europe |
| Country of origin | Czech Republic |
| Delivery time | Sofort |
| Freight basis | Free loaded; Container/Truck |
| Price |
Technical Details :
| sheet width | 3000 mm |
| plate thickness | 25 mm |
| pre-bending | No |
| roll diameter | 410 mm |
| total power requirement | kW |
| weight of the machine ca. | 22 t |
| dimensions of the machine ca. | m |
Other Details :
- Working width mm 3000
Number of roll … 3
The smallest inner diameter of 500 mm pipes
Upper cylinder diameter 410 mm
Lower cylinder diameter 350 mm
Speed: rolling m min-1 7.3
adjustment of the upper cylinder mm min-1 90
Electric power:
for the drive cylinder 30 kW
adjustment for the upper cylinder 21 kW
hydraulic unit for 0.8 kW
Machine dimensions: length 6000 mm
width 2035 mm
height 2250 mm
working height 800 mm
Machine weight kg 22000
