Details :
| Stock No | 1133-S141 |
| Machinetype | Profile-Bending Machine |
| Make | PIESOK |
| Type | XZP 120 |
| Newin | |
| Control | conventional |
| Location | Germany |
| Country of origin | Czech Republic |
| Term of delivery | at Immediate |
| Quotation | Free loaded; Container/Truck |
| Price | Auf Anfrage EUR |
Technical Details :
| angle steel/side length | mm |
| double T-iron on the x-axis | 120 mm |
| U-iron on the x-axis | mm |
| roll diameter | 480 mm |
| bending pressure | 500 MPa |
| bending arbor | 480 |
| total power requirement | 20 kW |
| weight of the machine ca. | 12,5 t |
| dimensions of the machine ca. | 3,3 x 2,1 x 2,5 m |
Other Details :

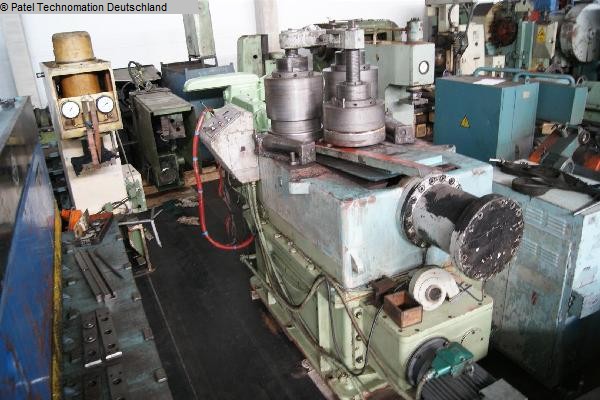

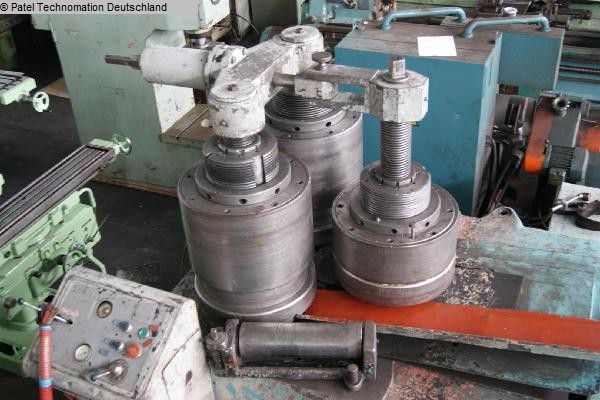

The machine is designed to roll profile bars such as: square, Flats, Angles, I, U, T profiles. Bending is done in a horizontal plane between the three rollers with vertical axes. The machines can be used two different bending speed. The drive motor is flanged reverse. Different profiles are rounded off to work without replacing pulleys. Carry only the adjustment of their functional parts. Roller adjustment is simple.

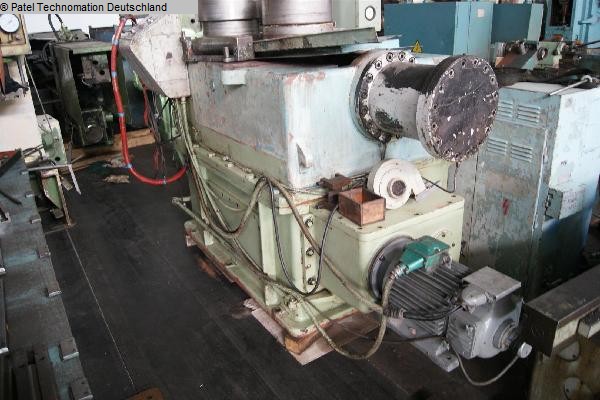

Rotary motion of pulley actuator is a mechanical through a gearbox.
Move the pressure roller is hydraulic
