Details :
| Stock No | 1133-D176 |

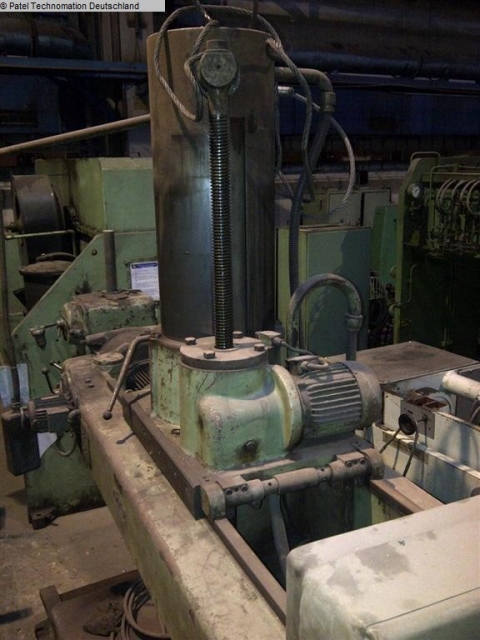

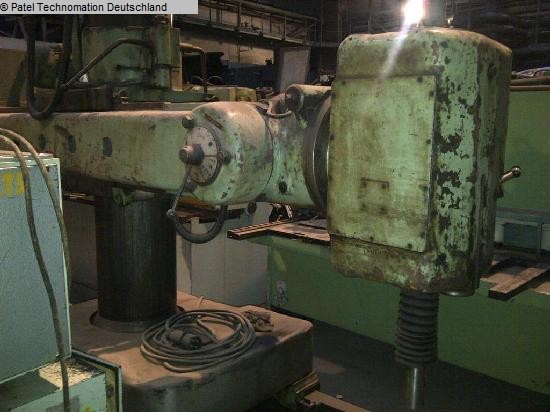

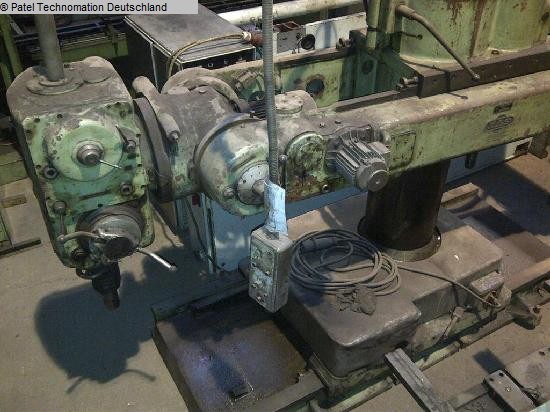

| Machinetype | Radial Drilling Machine - Universal |
| Make | TOS |
| Type | VRM 50 |
| Newin | 1970 |
| Control | conventional |
| Location | Europe |
| Country of origin | Czech Republic |
| Term of delivery | at Immediate |
| Quotation | Free loaded in Container/Flat |
| Price | Auf Anfrage EUR |
Technical Details :
| bore capacity in steel (diameter) | 50 mm |
| arm length | 2070 mm |
| workpiece height max. | 1555 mm |
| total power requirement | 4 kW |
| weight of the machine ca. | 6,1 t |
| dimensions of the machine ca. | m |
Other Details :
- Universal Drill
- The largest diameter of the boring: steel strength of 588 MPa 50 mm
- The largest thread: steel strength of 588 MPa: M48
- Distance from spindle pole coats: 1 170-2 070 mm
- Pitch circle radius of drilled holes: 1 370-2 270 mm
- Distance of spindle head vertical from the floor (when retracted spindle): 0-1 555 mm
- Distance spindle axis horizontal to the floor: 295-2 725 mm
- Vertical adjustment arm: 1250 mm
- Horizontal adjustment arm 900 mm
- Rotating arm 360 ° ; 360 ° Rotating Spindle
- Tilting the head with the headstock 180
- Travel slides column on the bed: 1200 mm
- Diameter of spindle head: 75 mm
- Spindle stroke (drilling depth): 350 mm
- Spindle: power: 4 kW
