Details :
| Stock No | 1133-T136 |
| Machinetype | Slotting Machine - Vertical |
| Make | UNKENANNT |
| Type | |
| Newin | |
| Control | konventionell |
| Location | India - Ahmedabad |
| Country of origin | Italien |
| Term of delivery | 0 |
| Quotation | Freeloaded on Truck |
| Price | 0.00 lkR |
Technical Details :
| max. ram stroke | 500 mm |
| throat | 630 mm |

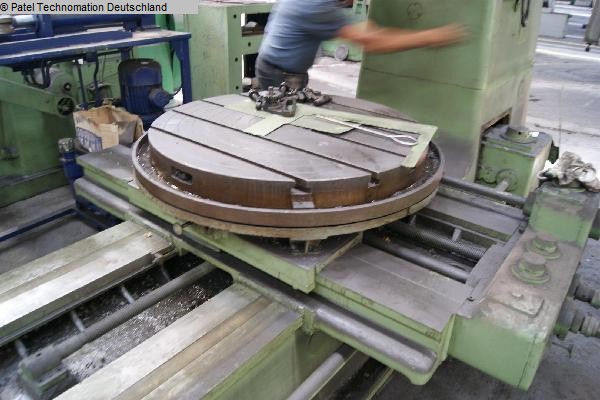

| table diameter | 1000 mm |
| total power requirement | kW |
| weight of the machine ca. | 11 t |
| dimensions of the machine ca. | m |
Other Details :
- Cross traverse of work table 660mm
- Longitudinal traverse of work table 1000mm
- Max weight of workplace 2000kg
- Distance between tool holding surface and column front 990mm
- Range of ram adjustment 430mm
- Distance between worktable and the lower side of side 740mm
- Inclination of ram head(left or right directions) 10°deg
- Number of ram strokes(per min) 9,12.5,18.25,36,50.
- Max cutting force 16000N
- Main motor 7.5kw.1400 r.p.m
