Details :
| Stock No | 1133-E128 |
| Machinetype | Stamping and Punching Machine |
| Make | AMADA |
| Type | ARIES 245 |
| Newin | 1992 |
| Control | conventional |
| Location | Europa |
| Country of origin | Japan |
| Term of delivery | at Immediate |
| Quotation | |
| Price | Auf Anfrage EUR |
Technical Details :
| sheet width | 1270 mm |
| plate length | 1000 mm |
| plate thickness | 4,5 mm |
| total power requirement | kW |
| weight of the machine ca. | 7,5 t |
| dimensions of the machine ca. | m |
Other Details :
- Cutting force: 200 kN
- Maximum sheet size: 1270 (X) x 1000 (Y) mm
- with 1 repositioning 2540 (X) x 1000 (Y) mm
- Max processing area: 1000×2000 mm
- punch accuracy: + / – 0.10 mm
- Stroke: 32 mm
- Stroke bpm: 300
- Punching strokes: 180/min. (25 mm)
- Engine: 3.7 kW
- turret: large turret 20 stations. 2 of them Amadex Small turret 18 stations
- Axis: X, Y, T und C
- interface : RS 232 C

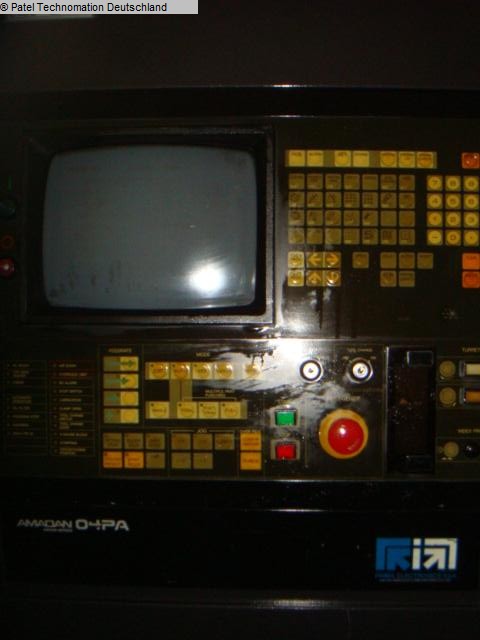

- Control system: AMADAN 04PA
