Details :
| Stock No | 1133-S142 |

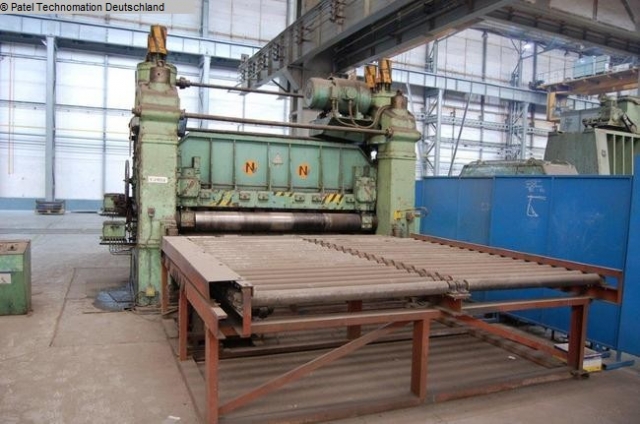

| Machinetype | Straightening Machine - Cold Plate |
| Make | WMW |
| Type | XRM 3200/20 |
| Newin | |
| Control | conventional |
| Location | Germany |
| Country of origin | Germany |
| Term of delivery | After Underpower Checkup |
| Quotation | Free loaded; Container/Truck |
| Price | Auf Anfrage EUR |
Technical Details :
| sheet width | 3200 mm |
| plate thickness | 20 mm |
| number of rolls | 12 |
| total power requirement | 90 kW |
| weight of the machine ca. | 74300 t |
| dimensions of the machine ca. | l 9,2 x h 3,9 m |
Other Details :
- The greatest thickness in strength
- 37 mm thickness for 21 kg/mm2
- 42 mm thickness for 20 kg/mm2
- 50 mm thickness for 18 kg/mm2
- 60 mm thickness for 16 kg/mm2
- 70 mm thickness for 15 kg/mm2
- The minimum thickness 5 mm
- Straightening speed I. – for sheet thicknesses 5-20 mm m / min
- 6 Straightening speed II. – For sheet thickness of 5-14 mm m / min
- 12 straightening rollers (driven) average number of 7 mm 240 Discontinued war (without drive)
- number 2 diameter 280 mm
- motor power to drive kW 90
- straightening rolls for operating the upper support 24 kW
- length (with control box) 9150 mm width 4760 mm height above / below ground mm 3960/550 working height mm 1010 machine
